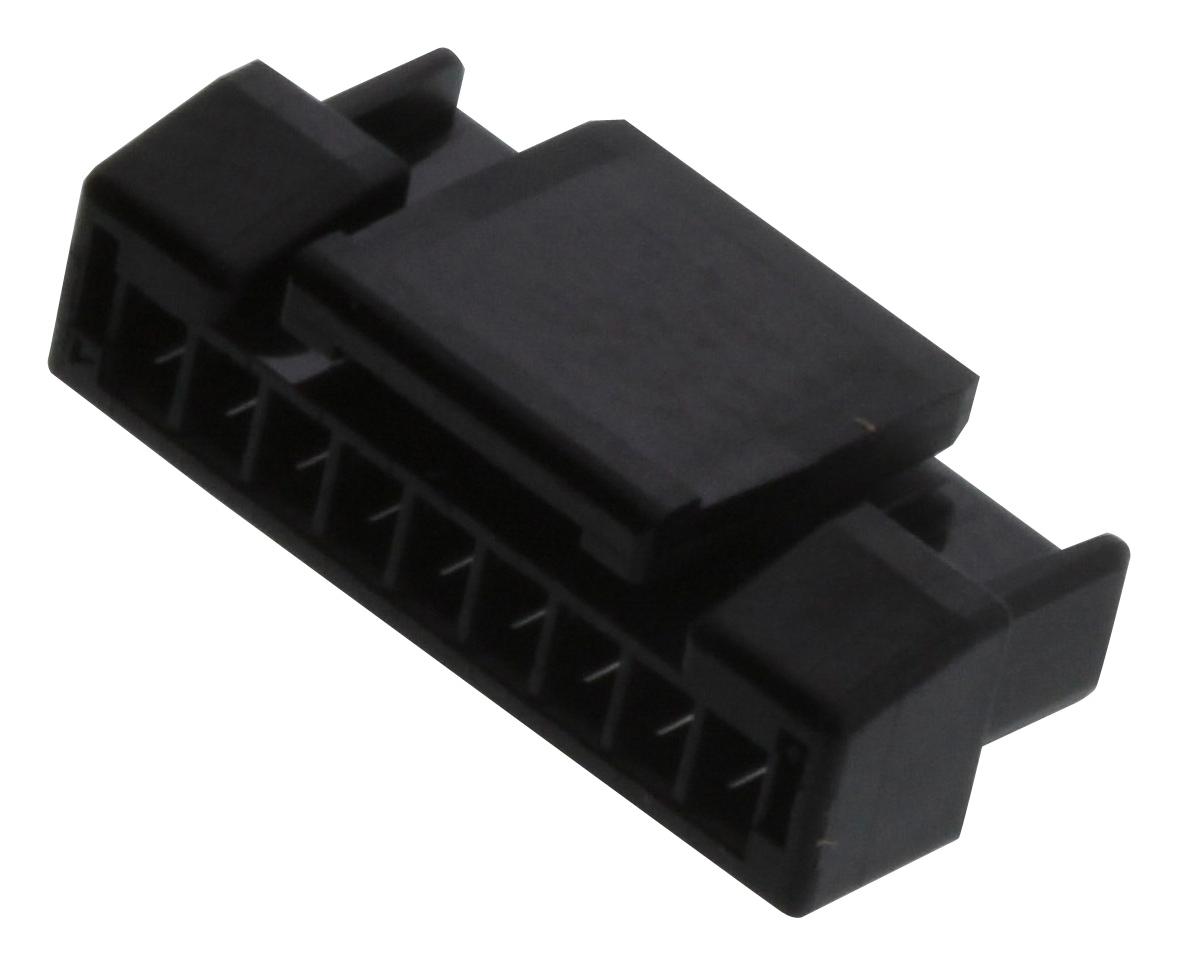

MOLEX 2045320901 Receptacle Connector
The Micro-Lock Plus Receptacle Housing is a durable, low-halogen, wire-to-board connector system designed for reliable electrical connections in various industrial applications. Featuring a 1.25mm pitch with a single row of 9 circuits, it offers positive locking and is made from high-quality polyester resin. The connector operates within a temperature range of -40°C to +105°C, complying with RoHS and UL standards. Its compact design and secure locking mechanism make it ideal for automation, control panels, and electronic device assembly where space saving and safety are essential.
MOLEX 2045320901 Receptacle Connector Specifications:
- Circuits (maximum): 9
- Color - Resin: Black
- Gender: Receptacle
- Glow-Wire Capable: No
- Keying to Mating Part: None
- Lock to Mating Part: Yes
- Material - Resin: Polyester
- Net Weight: 165.679 mg
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 1.25mm
- Pitch - Termination Interface: 1.25mm
- Temperature Range - Operating: -40°C to +105°C
- Agency Certifications: UL, CSA
- RoHS Compliant: Yes
- Halogen-Free: Low-Halogen
- Reference Drawing Number: AS-505565-001-001
- Packaging Specification: 2045329200-200
Buy the Molex 2045320901 – Reliable Micro-Lock Plus Connector for Industrial Applications
Get the Molex Micro-Lock Plus Receptacle Housing with a 1.25mm pitch, 9 circuits, and reliable locking mechanism. Perfect for space-saving wiring in control systems, automation, and electronic devices. Made from durable polyester resin, it withstands temperatures from -40°C to +105°C and complies with RoHS and UL standards. Its low-halogen, safety-focused design ensures dependable electrical connections in harsh environments, enhancing project safety and efficiency. Purchase online now for fast delivery and trusted quality.
Order your Molex Series2045320901 Micro-Lock Plus Receptacle Housing today and ensure secure, space-efficient electrical connections for your industrial electronics.
Frequently Asked Questions
Where can I buy MOLEX 2045320901?
You can click on the BUY or RFQ button to purchase 2045320901 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2045320901?
You can download the 2045320901 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2045320901?
MOLEX
