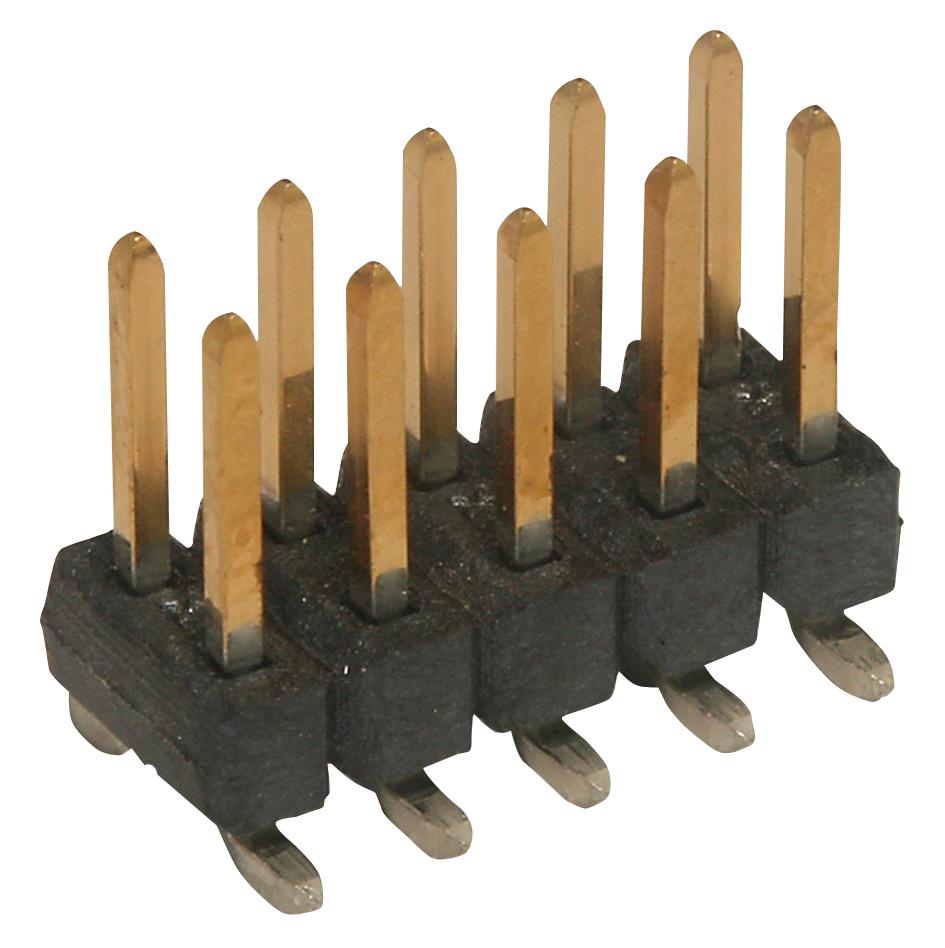

MOLEX 15910040 C-Grid Header
The 2.54mm Pitch C-Grid Header is a surface-mount, dual-row connector designed for board-to-board and signal wire-to-board applications. Made from phosphor bronze with gold plating, it offers reliable electrical connections with a maximum current of 3.0A per contact and voltage of 250V. This high-temperature thermoplastic component withstands operating temperatures from -40°C to +105°C and supports up to 50 mating cycles. It features a black color, roHS compliance, and is suitable for various high-reliability electronic assemblies demanding durability and precise interconnectivity.
MOLEX 15910040 C-Grid Header Specifications:
- Pitch - Mating Interface: 2.54mm
- Number of Rows: 2
- Circuits (Loaded): 4
- Circuits (maximum): 4
- Color - Resin: Black
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Durability (mating cycles max): 50
- Flammability: 94V-0
- Temperature Range - Operating: -40° to +105°C
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 250V
- Process Temperature Max: 260°C
- Net Weight: 0.240g
- Packaging Type: Bag
- RoHS: Compliant, Low-Halogen, Halogen-Free
- ISO Certifications: CSA, UL
- Lock to Mating Part: None
- Orientation: Vertical
- PCB Retention & Locator: None
- Termination Interface: Surface Mount
Buy the Buy Molex C-Grid Connector Part Number 15910040 Online
Enhance your electronic assemblies with the Molex C-Grid Header featuring 2.54mm pitch, gold plating, and durable materials. Perfect for reliable board-to-board and wire-to-board connections, it offers excellent electrical performance with maximum current of 3A and voltage of 250V. Designed for easy surface mounting, it withstands up to 50 mating cycles, operating within -40°C to +105°C temperature range. Compliant with RoHS standards, this connector ensures safety, durability, and precision in demanding applications.
Order your Molex Series71308 15910040 high-reliability connector today and ensure secure, precise interconnections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 15910040?
You can click on the BUY or RFQ button to purchase 15910040 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15910040?
You can download the 15910040 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15910040?
MOLEX
