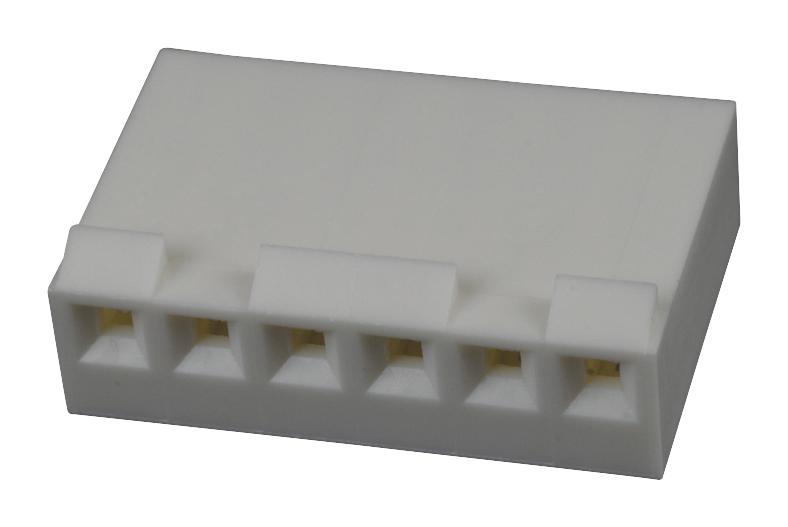

MOLEX 09508080 Electrical Connector
This is a detailed electrical connector component crafted from N-Glass Filled Polyester with UL94V-0 rating, designed for reliable and safe circuit connections. It features molded natural finish with specified terminal compatibility, supporting a range of circuit configurations including 2-14 circuits. The connector is engineered to accept standard and optional terminal types such as friction lock, polarizing, and modular headers, with specific dimensions for pin and housing compatibility. Suitable for industrial automation, control systems, and electronic equipment requiring secure, high-performance connections, its precise dimensions and conforming to Class B cosmetic standards ensure durability, ease of assembly, and compliance with safety requirements.
MOLEX 09508080 Electrical Connector Specifications:
- Material: N-Glass Filled Polyester
- Finish: Natural
- Flammability Rating: UL94V-0
- Circuit Range: 2-14 circuits
- Housing Material: Molded natural polyester
- Dimensions: Refer to detailed size chart, with key measurements such as 8.79mm, 12.75mm, 16.71mm, 19mm, 23.77mm, and 56.34mm for various circuit configurations
- Pin Compatibility: Matches with standard headers, square and round pins
- Terminal Compatibility: Accepts 18-24 AWG and 22-26 AWG wires, with insulation diameters up to 0.110 inch
- Certifications: UL Listed
- Design Features: Polarizing ribs, optional ramps, and locking features for secure connections
- Conformance: Meets Class B cosmetic standards, suitable for tight assembly environments
- Operating Temperature: Not specified in OCR, but typically rated for industrial temperature ranges
- Packaging: Bulk options available according to circuit count and terminal options
Buy the Molex 09508080 – Reliable Electrical Connector for Industrial Applications
Buy Molex 09508080 online today to ensure reliable electrical connections for your industrial, automation, or control projects. This connector supports 2-14 circuits with various terminal options like friction lock, polarizing, and modular headers, making it versatile for diverse wiring configurations. Constructed from UL94V-0-rated N-Glass Filled Polyester, it provides excellent durability, safety, and high-performance performance. Its precise dimensions, conforming to Class B cosmetic standards, guarantee an easy, secure fit and long-lasting reliability, ideal for electronics manufacturing, control panels, and automation systems. Order now to enhance your project’s connection quality and safety.
Get Molex 09508080 today—built for precision, durability, and secure circuit connections in industrial and electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 09508080?
You can click on the BUY or RFQ button to purchase 09508080 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 09508080?
You can download the 09508080 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 09508080?
MOLEX
