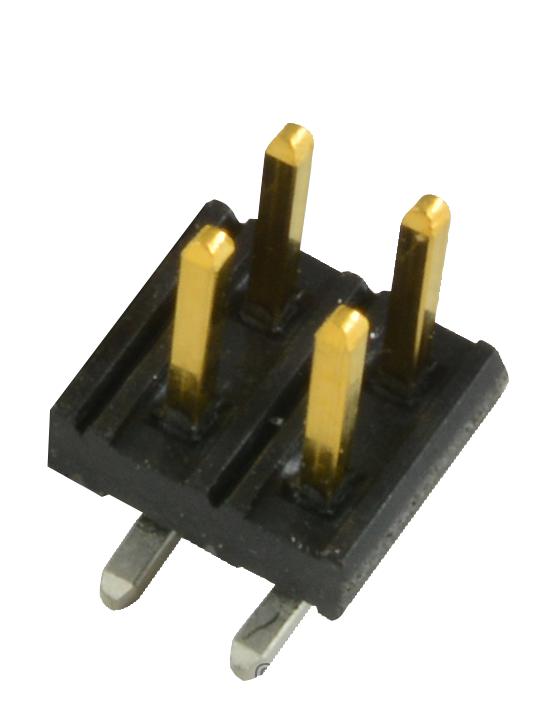

MOLEX 877590414 Milli-Grid Connector
The Milli-Grid Header is a surface mount, vertical connector featuring 4 circuits with 0.38um gold selective plating, lead-free construction, and durable design suitable for board-to-board applications. Designed for reliability, it withstands up to 100 mating cycles and operates within a temperature range of -55°C to +105°C. The connector is made from phosphor bronze and nylon, with gold and tin plating for excellent conductivity and corrosion resistance. It is RoHS and REACH compliant, making it ideal for environmentally conscious manufacturing and electronic integration in industrial and consumer devices.
MOLEX 877590414 Milli-Grid Connector Specifications:
- Circuits: 4
- Maximum Circuits (Loaded): 4
- Color - Resin: Black
- Flammability: 94V-0
- Material - Metal: Phosphor Bronze
- Material - Resin: Nylon
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- First Mate / Last Break: No
- Durability (mating cycles max): 100
- Temperature Range: -55°C to +105°C
- Current - Maximum per Contact: 2.0A
- Pitch - Mating Interface: 2.00mm
- Pitch - Termination Interface: 2.00mm
- Plating min - Mating: 0.38um gold selective
- Voltage - Maximum: 125V
- Dimensions: Mated height 3.80mm
- Packaging Type: Tray
- Approvals: UL, RoHS, REACH compliant
Buy the Molex Series Milli-Grid PCB Headers: 877590414
Purchase the Molex Milli-Grid Connector System 877590414 online to ensure high-quality, reliable board-to-board connectivity. This surface mount, vertical connector features four circuits with gold plating for excellent conductivity, rated for -55°C to +105°C operation, and up to 100 mating cycles for durable performance. Its RoHS and REACH compliance makes it suitable for environmentally conscious manufacturing. Easy to install, it offers precise dimensions of 3.80mm height, with a 2.00mm pitch, ensuring secure and efficient electronic integration across diverse industrial and consumer applications. Order now for quick delivery and expert support.
Get Molex Milli-Grid Connector System 877590414 today—built for precision, reliable connections, and long-lasting durability in your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 877590414?
You can click on the BUY or RFQ button to purchase 877590414 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 877590414?
You can download the 877590414 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 877590414?
MOLEX
