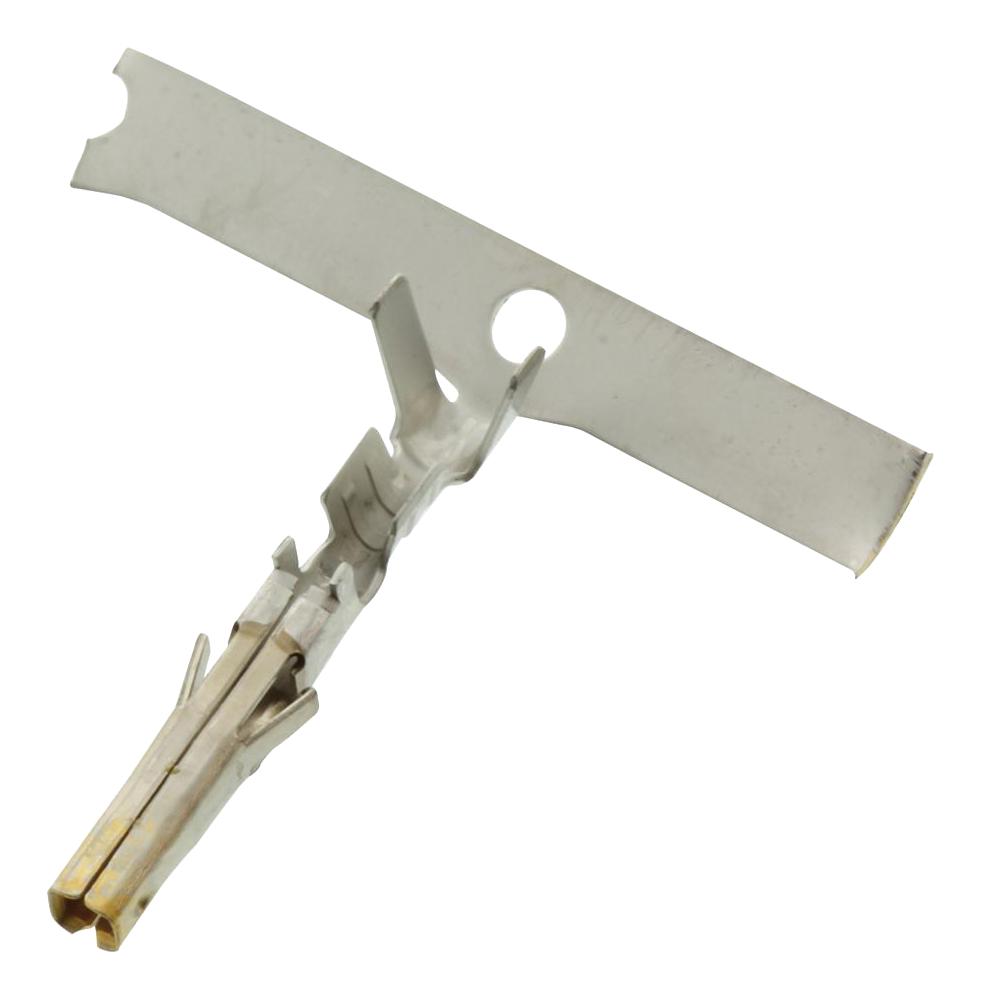

MOLEX 39000434 Power Crimp Terminal
The Mini-Fit Female Crimp Terminal is designed for power connections in various electronic applications. Featuring selective gold and tin over nickel plating, it supports 22-28 AWG wire range. With a robust brass metal construction, this reel-pack terminal ensures reliability and high performance with a maximum of 30 mating cycles. It is rated for a maximum current of 9.0A and voltage of 600V, making it suitable for power and wire-to-board applications. Certified RoHS compliant, it is compatible with Mini-Fit Series power connectors.
MOLEX 39000434 Power Crimp Terminal Specifications:
- Material: Brass
- Plating - Mating: Gold
- Plating - Termination: Tin
- Wire Range: 22-28 AWG
- Wire Insulation Diameter: 0.90-1.80mm
- Durability: Max. 30 mating cycles
- Current Rating: 9.0A
- Voltage Rating: 600V
- Net Weight: 0.120 g
- Packaging Type: Reel
- Mechanical Interface: Crimp or Compression
- Reference Drawing Numbers: 55560001-PS-ES-000, 55560002-PS-SK-000, etc.
- Application Specification: 55560001-AS-000
- RoHS Compliance: Yes
- Halogen-Free: Low-Halogen
Buy the Molex 39000434 – Reliable Power Crimp Terminals for Industrial Applications
Enhance your electrical assemblies with Molex power crimp terminals designed for reliability and high performance. Featuring high-quality brass construction with gold and tin plating, these terminals support 22-28 AWG wires and are rated for 9.0A and 600V. Ideal for power, wire-to-board, and wire-to-wire applications, they come in reel packaging for easy handling. Certified RoHS compliant and suitable for a wide range of industrial, commercial, and electronic projects, these terminals ensure durable and secure connections with up to 30 mating cycles. Buy online today and ensure your project’s success with trusted components.
Order your Molex Series39000434 power connectors today and enhance your electrical projects with the dependable quality of Mini-Fit crimp terminals.
