A Premier B2B Part Search

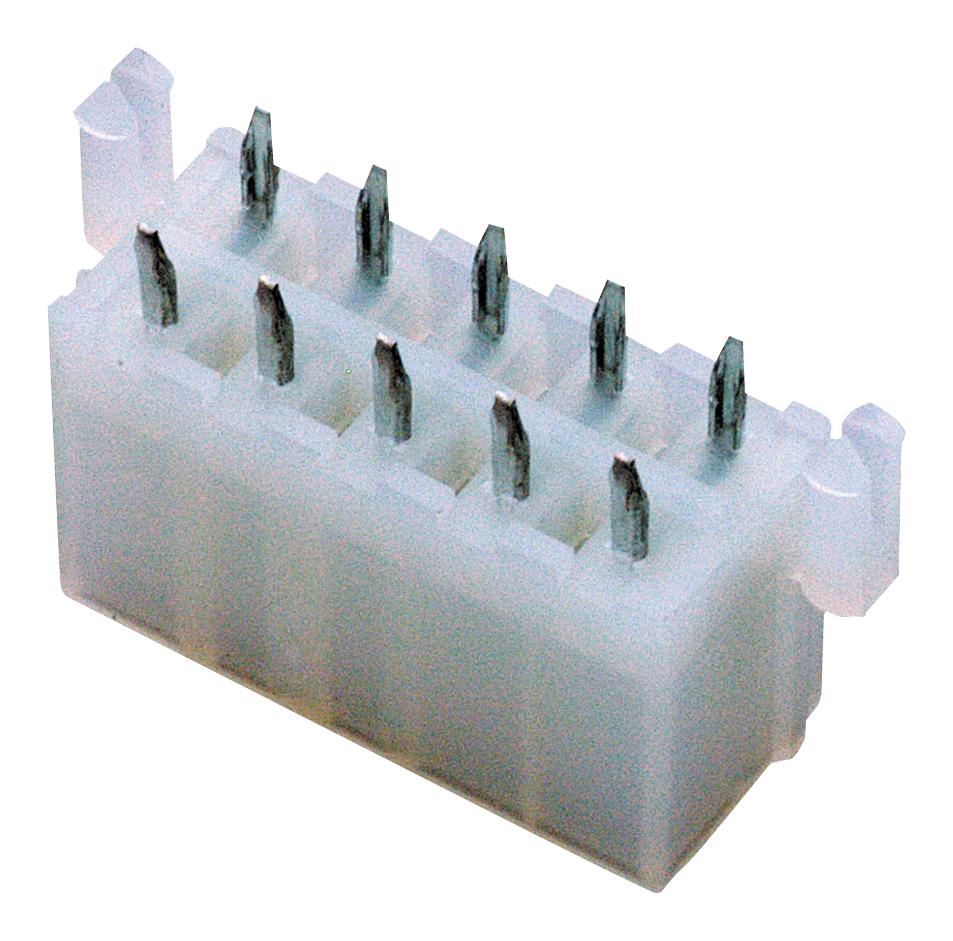

MOLEX 39299107 Power Connector
The Mini-Fit Jr. vertical header with a 4.20mm pitch is a reliable power connector designed for wire-to-board applications. It features dual rows and 10 circuits with snap-in plastic pegs for secure PCB locking. Constructed with tin-plated metal, it supports high current ratings up to 9A per contact and operates within a temperature range of -40°C to +105°C. Suitable for standard Mini-Fit female terminals, this connector is RoHS compliant, halogen-free, and certified by CSA and UL for safety and environmental standards. It is ideal for power distribution in industrial and electronic assemblies.
MOLEX 39299107 Power Connector Specifications:
- Pitch: 4.20mm
- Number of Rows: 2
- Circuits (Loaded): 10
- Maximum Circuits: Not specified
- Color - Resin: Not specified
- Durability: Not specified
- Flammability: Not specified
- Materials: Metal with tin plating, plastic housing
- Plating Min - Mating: 0.889μm
- Plating Min - Termination: 0.889μm
- PCB Thickness - Recommended: 1.60mm
- Operating Temperature: -40°C to +105°C
- Current per Contact: 9A
- Maximum Voltage: 600V
- Termination Style: Through Hole
- Guide to Mating Part: Yes, polarized
- Guide to PCB: Yes, polarized
- Surface Mount Compatible: No
- Stackable: No
- Lock to Mating Part: Snap-in plastic
- Certifications: CSA, UL, RoHS, China RoHS
- Packaging: Tray
- Weight: Not specified
Buy the Molex 0039299107 – Reliable Power Connectors for Industrial Applications
Discover the reliable Molex 0039299107 power connector, featuring a 4.20mm pitch, dual rows, and 10 circuits, ideal for power distribution in industrial equipment. It ensures secure electrical connections with a snap-in plastic peg, supporting up to 9A per contact and operating within a temperature range of -40°C to +105°C. Certified by UL and CSA, RoHS compliant, and halogen-free, this connector is perfect for safety-conscious and environmentally friendly electronic assemblies. Order online now to upgrade your power connectivity solutions efficiently.
Order your Molex 0039299107 Series Power Connectors today and enhance your industrial power distribution with dependable, high-quality connectors.
Frequently Asked Questions
Where can I buy MOLEX 39299107?
You can click on the BUY or RFQ button to purchase 39299107 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39299107?
You can download the 39299107 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39299107?
MOLEX
