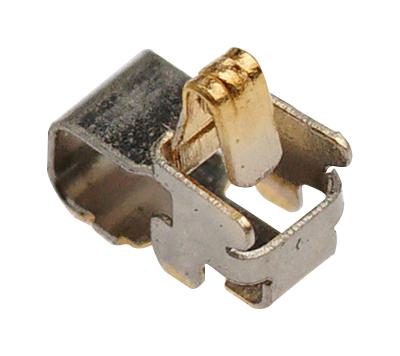

MOLEX 1054390005 Spring Clip
The Anti-Snag Spring Clip features a 1.32mm width and is plated with 0.25um gold for reliable electrical contact. Made from stainless steel with gold plating, it is designed for mobile device applications, offering an operating temperature range from -40°C to +85°C. Suitable for solder termination and capable of handling a maximum current of 1.5A. This component ensures secure connections and minimizes snagging in portable electronics, complying with RoHS standards. Its compact design and plated surfaces make it ideal for modern mobile device assemblies and electronic accessories.
MOLEX 1054390005 Spring Clip Specifications:
- Material: Stainless Steel
- Material - Plating Mating: Gold, 0.254um
- Material - Plating Termination: Gold, 0.25um
- Width: 1.32mm
- Working Range (Height): 1.40mm - 2.00mm
- Temperature Range: -40°C to +85°C
- Termination Interface: Solder
- Current - Maximum per Contact: 1.5A
- Net Weight: 0.008g
- Packaging: Embossed Tape on Reel
- Certifications: RoHS Compliant, Low-Halogen
- Reference Drawing: SD-105439-500
Buy the Buy Molex Spring Clip Part Number 1054390005 Online
Purchase the Molex Spring Clip 1054390005 online to ensure reliable, corrosion-resistant connections for your mobile device projects. Crafted from stainless steel with gold plating, this clip offers excellent electrical contact, withstands temperatures from -40°C to +85°C, and handles currents up to 1.5A. Its compact size and solder termination make it ideal for space-constrained electronic assemblies, providing a secure fit and minimal snagging. Perfect for portable electronics requiring high-quality, durable spring clips that meet industry standards for RoHS compliance and environmental safety.
Get Molex Spring Clip 1054390005 today—built for secure connections and durable performance in mobile electronics.
Frequently Asked Questions
Where can I buy MOLEX 1054390005?
You can click on the BUY or RFQ button to purchase 1054390005 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1054390005?
You can download the 1054390005 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1054390005?
MOLEX
