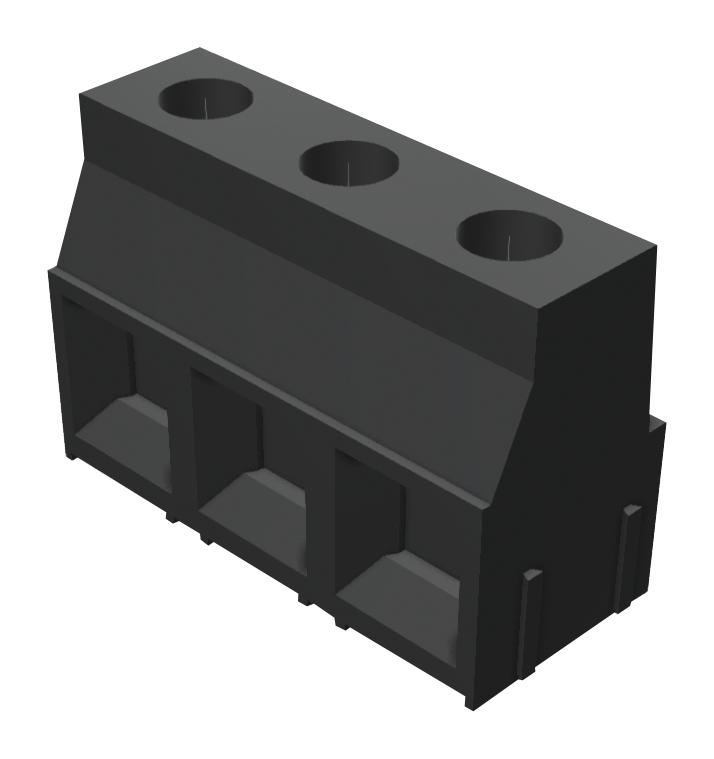

MOLEX 393900103 Eurostyle Terminal Block
The Eurostyle Fixed Mount terminal block offers a reliable, modular connection solution with a 9.52mm pitch, supporting up to 3 circuits and a current capacity of 30A. Designed for PCB mounting with vertical orientation and horizontal entry, it features a 5.20mm PCB tail length suitable for 4.00mm thick PCB. This RoHS-compliant component operates within a temperature range of 110°C, ensuring durability across various industrial applications. Its stackable design enables flexible circuit configurations, making it ideal for control panels, automation, and electrical device wiring.
MOLEX 393900103 Eurostyle Terminal Block Specifications:
- Pitch - Mating Interface: 9.53mm
- Pitch - Termination Interface: 9.53mm
- Circuits (Loaded): 3
- Entry Angle: Horizontal
- Number of Rows: 1
- Orientation: Vertical
- PCB Tail Length: 5.20mm
- PCB Thickness - Recommended: 4.00mm
- Current - Maximum per Contact: 30A
- Voltage - Maximum: 600V
- Temperature Range - Operating: 110°C
- Wire Size: AWG 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30
- Material: RoHS compliant, Lead-free, Low-Halogen
- Process Temperature Max: Not specified
- RoHS compliance: Yes
- Recycling standards: EU RoHS, China RoHS, REACH SVHC compliant
Buy the Molex 0393900103 – Reliable Eurostyle Terminal Block for Industrial Applications
Enhance your electrical control systems with Molex Eurostyle Terminal Blocks. This high-quality, modular PCB terminal block features a 9.52mm pitch, supports 3 circuits, and carries a current of 30A at 600V. Designed for vertical mounting, it offers easy wiring, robustness, and compliance with RoHS standards. Perfect for industrial panels, automation projects, and electrical assemblies, these terminal blocks ensure secure connections and long-lasting performance. Order online today for fast delivery and reliable operation in demanding environments.
Buy Molex 0393900103 now and experience unmatched reliability and performance in PCB wiring and control systems.
Frequently Asked Questions
Where can I buy MOLEX 393900103?
You can click on the BUY or RFQ button to purchase 393900103 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 393900103?
You can download the 393900103 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 393900103?
MOLEX
