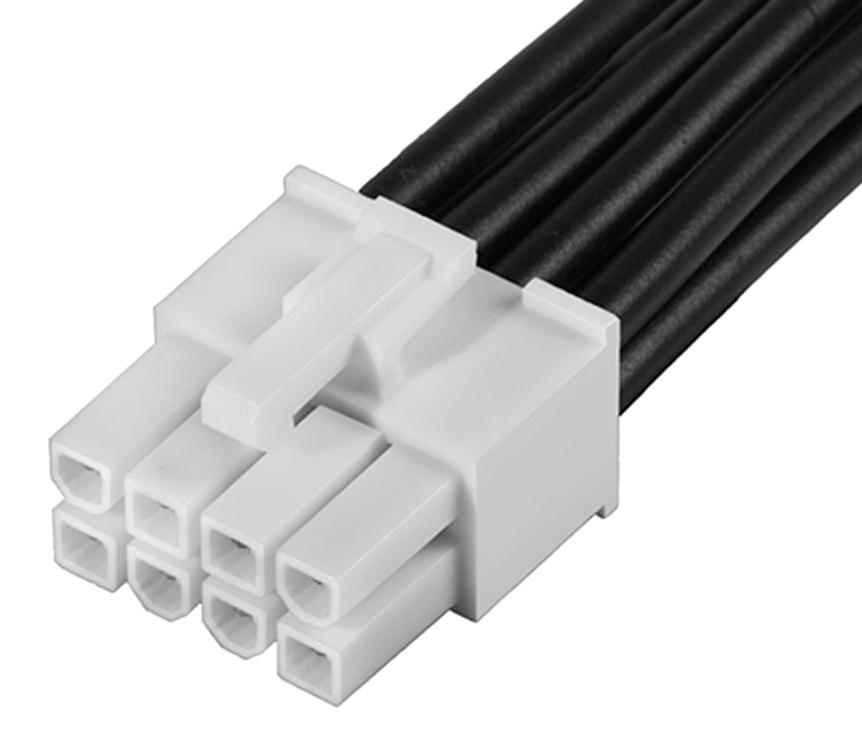

MOLEX 2153271081 Mini-Fit Jr. Cable Assembly
The MOLEX 215327-1081 is a Mini-Fit Jr. male-to-male off-the-shelf cable assembly, ideal for wire-to-wire power applications. It boasts a dual-row configuration, 8 circuits, and a 150mm length, ensuring reliable power transmission. Constructed with brass and nylon materials and featuring tin plating for both mating and termination interfaces, this assembly provides excellent conductivity and durability. It is RoHS compliant and suitable for various industrial and commercial applications requiring robust and dependable power connectivity.
MOLEX 2153271081 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr. Both Ends
- cable_length: 150.00mm
- circuits_loaded: 8
- color_resin: Black
- material_metal: Brass
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- material_resin: Nylon
- net_weight_g: 36.356
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.540µm
- plating_min_termination: 2.540µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_mm: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact_a: 9.0
- voltage_maximum_v: 600
- upc: 193264590339
- material_info: Not Contained Per - D(2020)4578-DC (25 June 2020)
- halogen_free_status: Not Low-Halogen
- mates_with: Mini-Fit Jr. Receptacle Housing 5557, Mini-Fit Jr. TPA Cable Assembly 45135, Mini-Fit Jr. Cable Assembly 245135
- drawing_number: 2153271081-000
