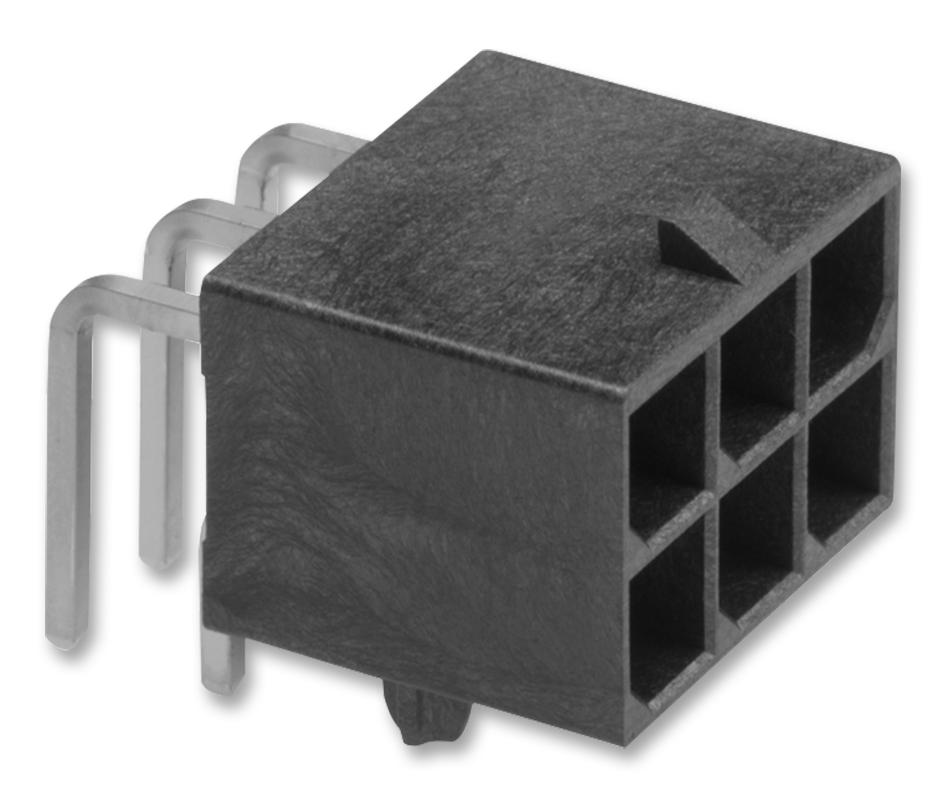

MOLEX 1720640006 Mega-Fit Power Connector
The Mega-Fit power connector is a high-current, PCB header designed for power applications. Featuring a 5.70mm pitch, right-angle orientation, and 6 circuits, it is made of high-temperature thermoplastic with copper metal and gold plating for reliable conductivity. It complies with UL 94 V-0 flammability standards, is RoHS and halogen-free, and supports operating temperatures from -40°C to +120°C. Its compact design includes PCB retention, keying, polarization, and shrouded features for secure and easy mating with compatible connectors.
MOLEX 1720640006 Mega-Fit Power Connector Specifications:
- Pitch: 5.70mm
- Number of Circuits: 6
- Color: Black
- Material - Metal: Copper
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Flammability: UL 94 V-0
- Temperature Range: -40°C to +120°C
- Current per Contact: 23.0A
- Voltage Maximum: 600V
- Mated Height: 16.78mm
- Unmated Height: 14.53mm
- Orientation: Right Angle
- Surface Mount Compatible: Yes
- Locking: To Mating Part, To PCB
- Surface Finish: Gold plating, Tin termination
- Surface Mount: Yes
- RoHS and Halogen-Free: Yes
- Packaging: Tray
- Application: Power, Wire-to-Board
Buy the Buy Molex Mega-Fit Power Connectors Part Number 1720640006 Online
Enhance your power connectivity solutions with the Molex Mega-Fit power connector, designed for high current and reliability. Its 5.70mm pitch, 6 circuits, and gold plating ensure excellent electrical performance. Crafted from high-temperature thermoplastic, it withstands temperatures from -40°C to +120°C, making it ideal for demanding industrial and electronic applications. The connector features secure locking, polarization, PCB retention, and compatibility with surface mount technology. Its UL 94 V-0 flame rating and RoHS compliance guarantee safety and environmental standards. Order online now for fast delivery and quality assurance.
Order your Molex SeriesMega-Fit 1720640006 power connector today and ensure reliable, high-current power delivery for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 1720640006?
You can click on the BUY or RFQ button to purchase 1720640006 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1720640006?
You can download the 1720640006 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1720640006?
MOLEX
