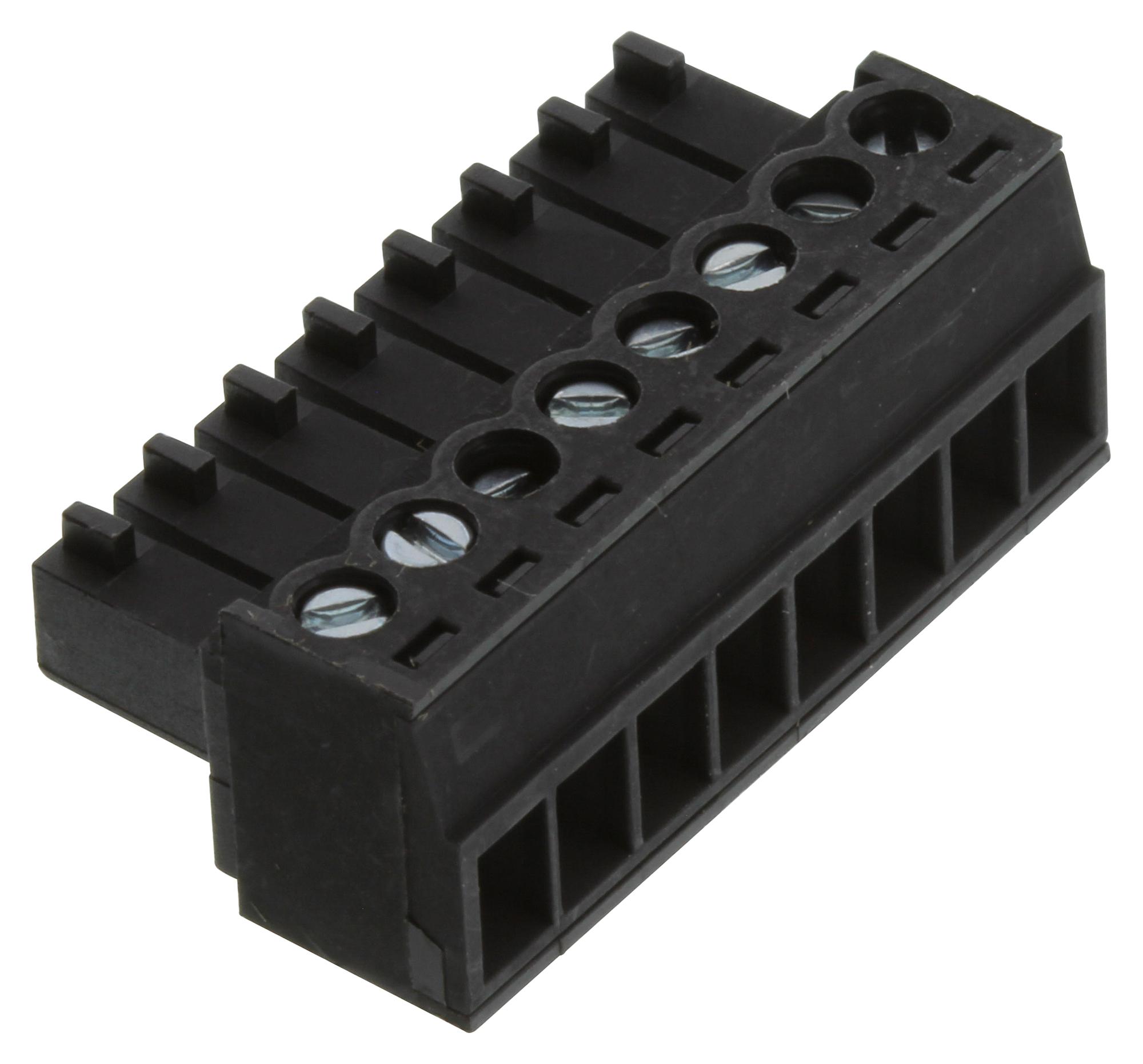

MOLEX 395000008 Eurostyle Terminal Block
The Eurostyle Terminal Blocks are 3.50mm pitch horizontal plug connectors with 8 circuits, designed for reliable electrical connections in electronic assemblies. These connectors feature a vertical orientation, are UL certified, RoHS compliant, and operate within a temperature range of -40°C to +105°C. They support wire sizes from 16 to 24 AWG or 0.05 to 1.50 mm, with a maximum current of 8A and voltage of 300V per contact. Ideal for industrial and control panel applications, they are compatible with various PCB headers and offer durable, easy-to-mate connections.
MOLEX 395000008 Eurostyle Terminal Block Specifications:
- Pitch - Mating Interface: 3.50mm
- Pitch - Termination Interface: 3.50mm
- Number of Circuits: 8
- Orientation: Vertical
- Temperature Range - Operating: -40°C to +105°C
- Wire Size AWG: 16, 18, 20, 22, 24, 30
- Wire Size mm: 0.05-1.50
- Current - Maximum per Contact: 8.0A
- Voltage - Maximum: 300V
- Material: UL listed, RoHS compliant, halogen-free, low-halogen
- Agency Certification: UL
- Applicable Standards: Industry standard PCB headers, mates with 39501, 39502 series
- Application: PCB connections in industrial, automation, and control systems
Buy the Buy Mopex Eurostyle Terminal Blocks Part Number 0395000008 Online
Purchase the Mopex Eurostyle Terminal Block with 8 circuits and 3.50mm pitch online today. Designed for industrial and control panel applications, this connector offers durable, reliable, and easy-to-mate electrical connections. Suitable for wire sizes from 16 to 24 AWG and operating within a temperature range of -40°C to +105°C, it ensures safety and stability in demanding environments. Enhance your electronics projects with this UL certified, RoHS compliant terminal block, available for quick and secure online ordering.
Buy Mopex 0395000008 now and experience unmatched reliability and performance for your industrial electronic connections.
