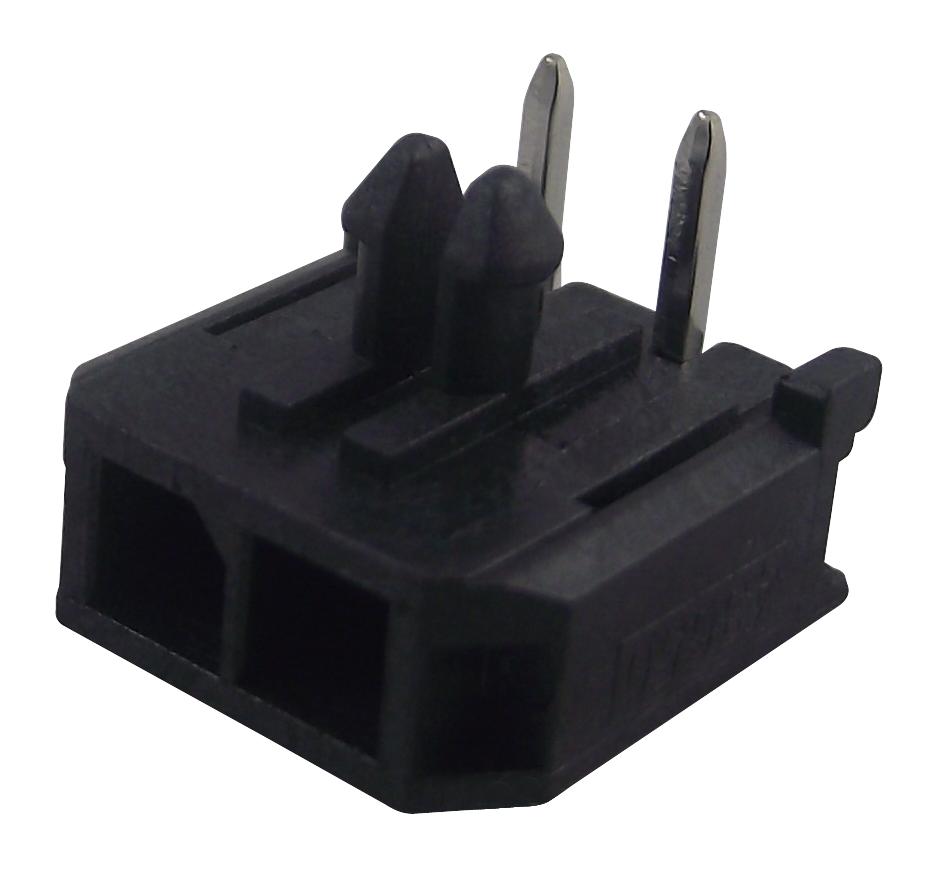

MOLEX 436500200 Micro-Fit Connector
This Micro-Fit 3.0 right-angle header offers a secure, reliable connection with fully polarized housing, positive latching, and a locking tang. Its 3.00mm pitch and single-row, 2 circuits design make it ideal for high-performance applications in energy, automotive, communications, consumer electronics, and medical devices. Constructed from high-temperature thermoplastic and plated with tin on brass contacts, it supports a maximum current of 8.5A and voltage of 600V. Designed for durability with up to 30 mating cycles, it is compliant with RoHS standards and suitable for through-hole soldering.
MOLEX 436500200 Micro-Fit Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 2
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 6.98mm
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Temperature Range: -40°C to +105°C
- Receptacle Compatibility: Micro-Fit 3.0 Receptacle Housing
- Orientation: Right Angle
- PCB Thickness - Recommended: 1.60mm
- Surface Mount Compatible (SMC): No
- Shrouded: Yes
- Stackable: No
Buy the Molex Series Micro-Fit 3.0 Connector: 0436500200
Purchase the Molex Micro-Fit 3.0 connector online today to ensure secure, reliable connections for your energy, automotive, or consumer electronics projects. Featuring polarized housing, positive latch, and tin-plated contacts, this high-temperature thermoplastic connector supports up to 8.5A at 600V and withstands up to 30 mating cycles. Its compact design with a 3.00mm pitch makes it ideal for tight-space applications in medical, communications, and networking devices. Enjoy fast, hassle-free online ordering and trusted quality from Molex.
Buy Molex 0436500200 now and experience unmatched reliability and performance with secure polarization and high current capacity.
Frequently Asked Questions
Where can I buy MOLEX 436500200?
You can click on the BUY or RFQ button to purchase 436500200 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 436500200?
You can download the 436500200 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 436500200?
MOLEX
