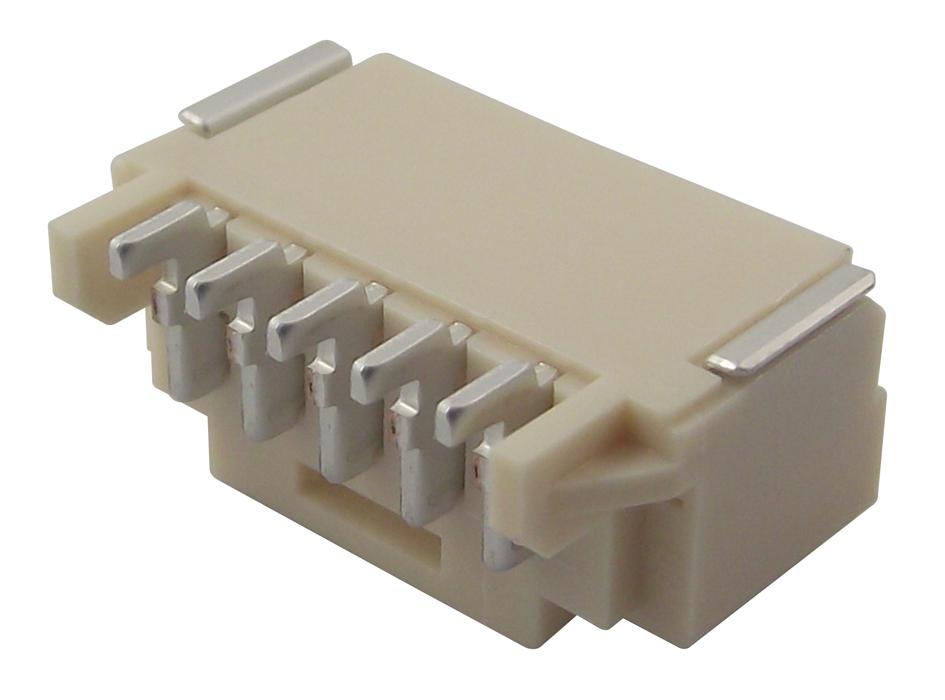

MOLEX 5023520500 Wire-to-Board Connector
The DuraClik Wire-to-Board Header is a reliable and versatile connector designed for automotive and signal applications. Featuring a single row, right-angle configuration with 5 circuits, it uses tin over nickel plating on copper alloy contacts. It supports up to 5 mating cycles and operates within a temperature range of -40°C to +105°C, or up to +125°C with certain series. The connector is made from durable polyamide resin, ensuring longevity and stable electrical connections in demanding environments. Its compact design facilitates easy PCB integration and secure mating, making it ideal for automotive and industrial applications.
MOLEX 5023520500 Wire-to-Board Connector Specifications:
- Number of Circuits: 5
- Pitch: 3.0 mm
- Operating Temperature Range: -40°C to +105°C, up to +125°C with certain series
- Material - Metal: Copper Alloy
- Plating: Tin over Nickel
- Material - Resin: Polyamide
- Color - Resin: Natural
- Mating Cycles: Up to 5
- Voltage Rating: 125 V
- Current Rating: 3.0 A
- Termination Interface: Surface Mount
- Lock to Mating Part: Yes
- Mated Height: 6.40 mm
- RoHS and ELV Compliant
- Halogen-Free Status: Not Low-Halogen
Buy the Molex Series DuraClik Wire-to-Board Header: 5023520500
Purchase the Molex DuraClik Wire-to-Board Header online today. Designed for automotive and industrial signal systems, it features 5 circuits, a right-angle configuration, and tin-plated contacts for enhanced durability. Operating within -40°C to +105°C, or up to +125°C with certain series, this connector offers reliable electrical performance. Made from high-quality polyamide resin, it ensures long-lasting operation, secure PCB mounting, and easy mating. Ideal for engineers seeking a dependable, space-efficient connection solution in demanding environments.
Get Molex 5023520500 today—built for reliability in automotive and industrial signal applications with durable and easy-to-mate design.
Frequently Asked Questions
Where can I buy MOLEX 5023520500?
You can click on the BUY or RFQ button to purchase 5023520500 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5023520500?
You can download the 5023520500 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5023520500?
MOLEX
