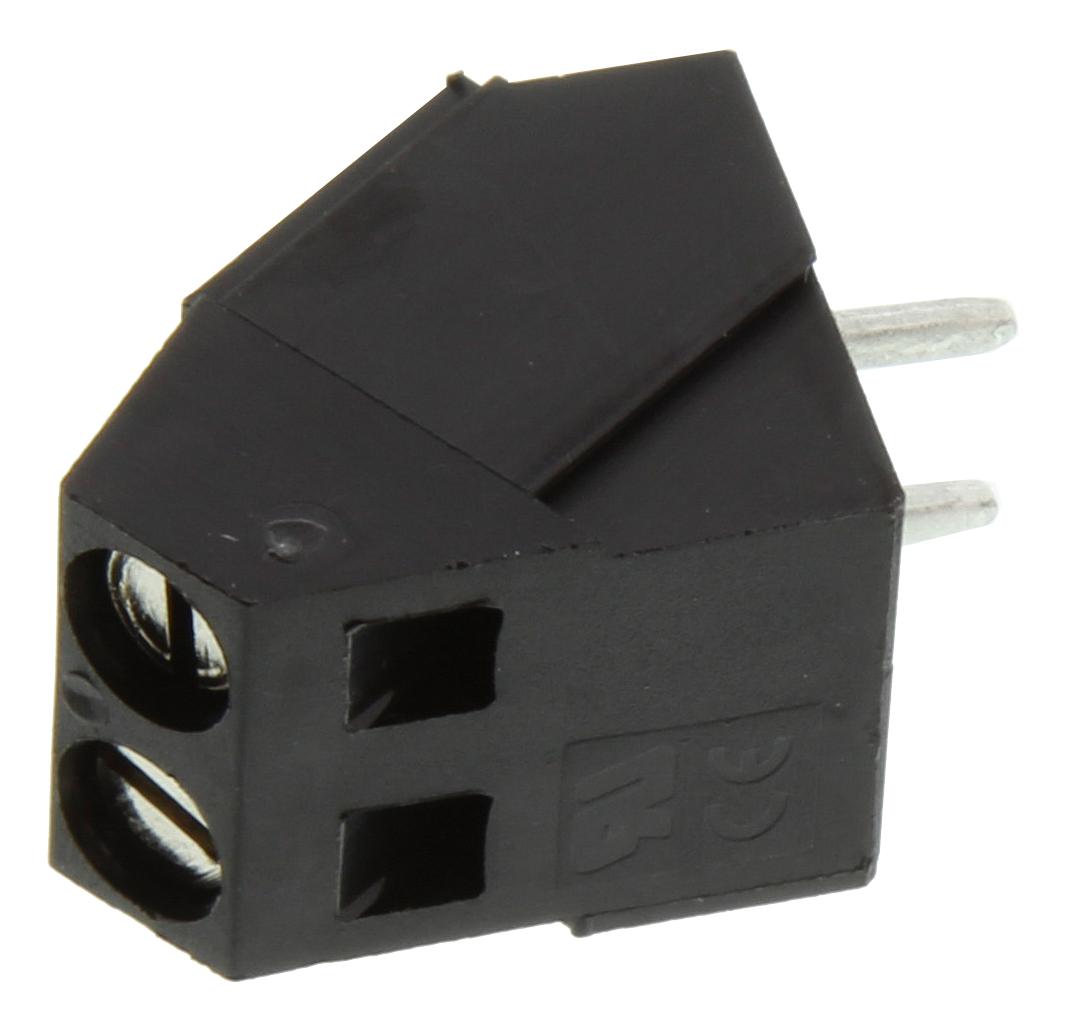

MOLEX 398900402 Eurostyle Terminal Block
The Eurostyle Terminal Block offers a low-profile, modular design with a 5.00mm pitch, suitable for various electrical connection applications. It features a single-level, vertical orientation with a 35° wire entry angle, supporting up to two circuits and with a maximum current of 17.5A per contact. Made from halogen-free, low-halogen materials, it is flammability rated UL 94V-0, and operates safely within a temperature range of -55°C to 105°C. It is compatible with wires from 12 to 30 AWG and 0.05-2.50mm², ensuring reliable electrical connections in diverse industrial setups.
MOLEX 398900402 Eurostyle Terminal Block Specifications:
- Pitch - Mating Interface: 5.00mm
- Pitch - Termination Interface: 5.00mm
- Wire Size AWG: 12, 14, 16, 18, 20, 22, 24, 26, 28, 30
- Wire Size mm²: 0.05-2.50
- Maximum Current per Contact: 17.5A
- Maximum Voltage: 300V
- Operating Temperature Range: -55°C to 105°C
- Material: Halogen-Free, Low-Halogen
- Flammability: UL 94V-0
- Net Weight: 2.920 g
- Number of Circuits: 2
- Orientation: Vertical
- Stackable: Yes
- Surface Mount Compatible: No
- Panel Mount: No
Buy the Molex Series Eurostyle Terminal Block: 398900402
Purchase the Molex Eurostyle Terminal Block online today for durable, high-current connections in industrial and electronic applications. This low-profile, 5.00mm pitch terminal features a vertical orientation and supports up to 2 circuits with 17.5A current capacity. Made from halogen-free materials, it operates safely within -55°C to 105°C, ensuring excellent performance in demanding environments. Compatible with AWG 12-30 wires, this compact terminal block is ideal for reliable electrical terminations in manufacturing, automation, and control systems. Get yours now for quick and hassle-free online ordering.
Order your Molex Series Eurostyle terminal block today and ensure reliable, high-current electrical connections for your projects.
Frequently Asked Questions
Where can I buy MOLEX 398900402?
You can click on the BUY or RFQ button to purchase 398900402 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 398900402?
You can download the 398900402 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 398900402?
MOLEX
