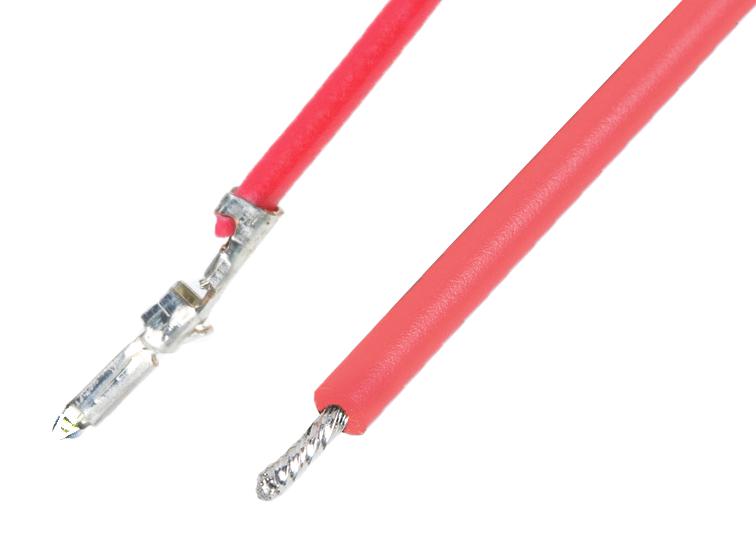

MOLEX 2149231124 PicoBlade Lead Assembly
The MOLEX 214923-1124 is a pre-crimped PicoBlade lead assembly designed for off-the-shelf applications. This assembly provides a convenient and reliable connection solution, eliminating the need for on-site crimping. It is ideal for applications requiring a male-to-pigtail configuration with a tin-plated finish for enhanced conductivity and corrosion resistance. The 300mm length and 28 AWG wire gauge make it suitable for a variety of electrical connections in industrial and consumer electronics.
MOLEX 2149231124 PicoBlade Lead Assembly Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 214923
- assembly_configuration: Pre-crimped Lead Only
- connector_type: PicoBlade Crimp Terminals
- cable_length: 300.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: Phosphor Bronze
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 0.417/g
- packaging_type: Bag
- pitch_mating_interface: 1.25mm
- plating_min_mating: 0.889µm
- single_ended: Yes
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.50-1.00mm
- wire_size_awg: 28
- wire_cable_type: UL 1061
- current_maximum_per_contact: 1.0A
- voltage_maximum: 125V AC (RMS)/DC
- upc: 193264503155
