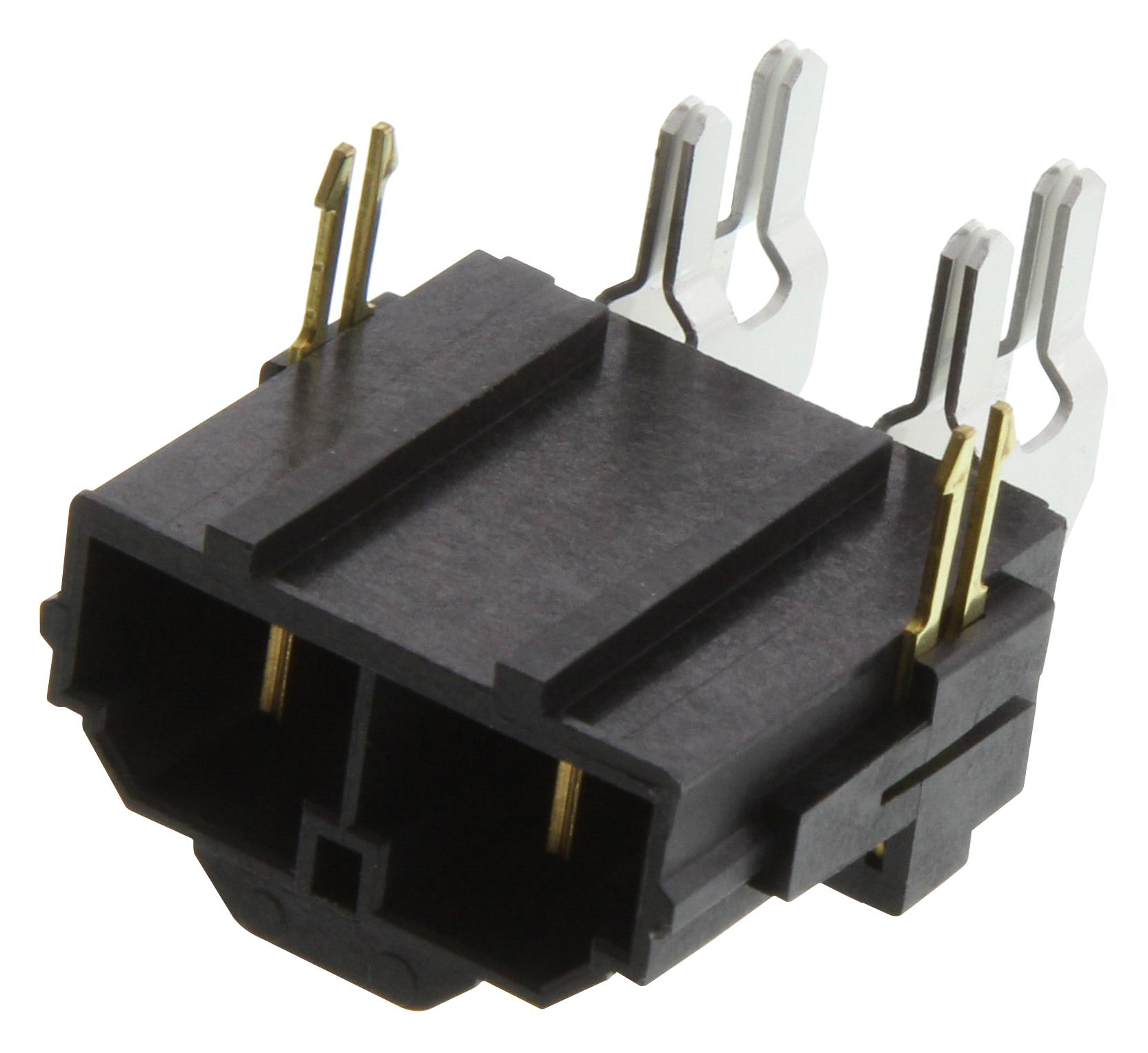

MOLEX 428203223 Power Connector
The Mini-Fit Sr. Power Connector is a 10.00mm pitch header designed for power applications. It features a single row, right-angle configuration suitable for PCB thickness of 2.36mm. With 3 circuits and gold plating, it ensures excellent conductivity and durability. Made from high-temperature thermoplastic with brass metal components, it supports a maximum current of 50A per contact and a voltage of up to 600V. Certified by UL and CSA, this connector is suitable for demanding power and wiring needs, offering reliable performance in various electronic assemblies.
MOLEX 428203223 Power Connector Specifications:
- Pitch: 10.00mm
- Number of Circuits: 3
- Maximum Current per Contact: 50A
- Maximum Voltage: 600V
- Color - Resin: Black
- Durability: 100 mating cycles
- Flammability: 94V-0
- Material - Metal: Brass
- Material - Plating - Mating: Gold over Nickel
- Material - Plating - Termination: Tin over Nickel
- Material - Resin: High Temperature Thermoplastic
- PCB Thickness - Recommended: 2.36mm
- PC Tail Length: 5.10mm
- Operating Temperature Range: -40°C to +105°C
- Termination Interface: Through Hole
- Surface Mount Compatible: No
Buy the Molex Series Mini-Fit Sr Power: 10.00mm Pitch Power Connector
Enhance your power distribution with the Molex Mini-Fit Sr Power connector, featuring a 10mm pitch, 3 circuits, and gold plating. Designed for PCB mounting with a right-angle configuration, it supports up to 50A per contact and 600V. Made from durable high-temperature thermoplastic with brass components, it offers reliable performance, UL and CSA certifications, and long-lasting repeatability for demanding electrical applications. Perfect for industrial, power supplies, and electronic device manufacturing requiring sturdy, high-current connectors.
Get Molex Mini-Fit Sr Power connector today—built for high current and reliable power distribution in electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 428203223?
You can click on the BUY or RFQ button to purchase 428203223 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 428203223?
You can download the 428203223 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 428203223?
MOLEX
