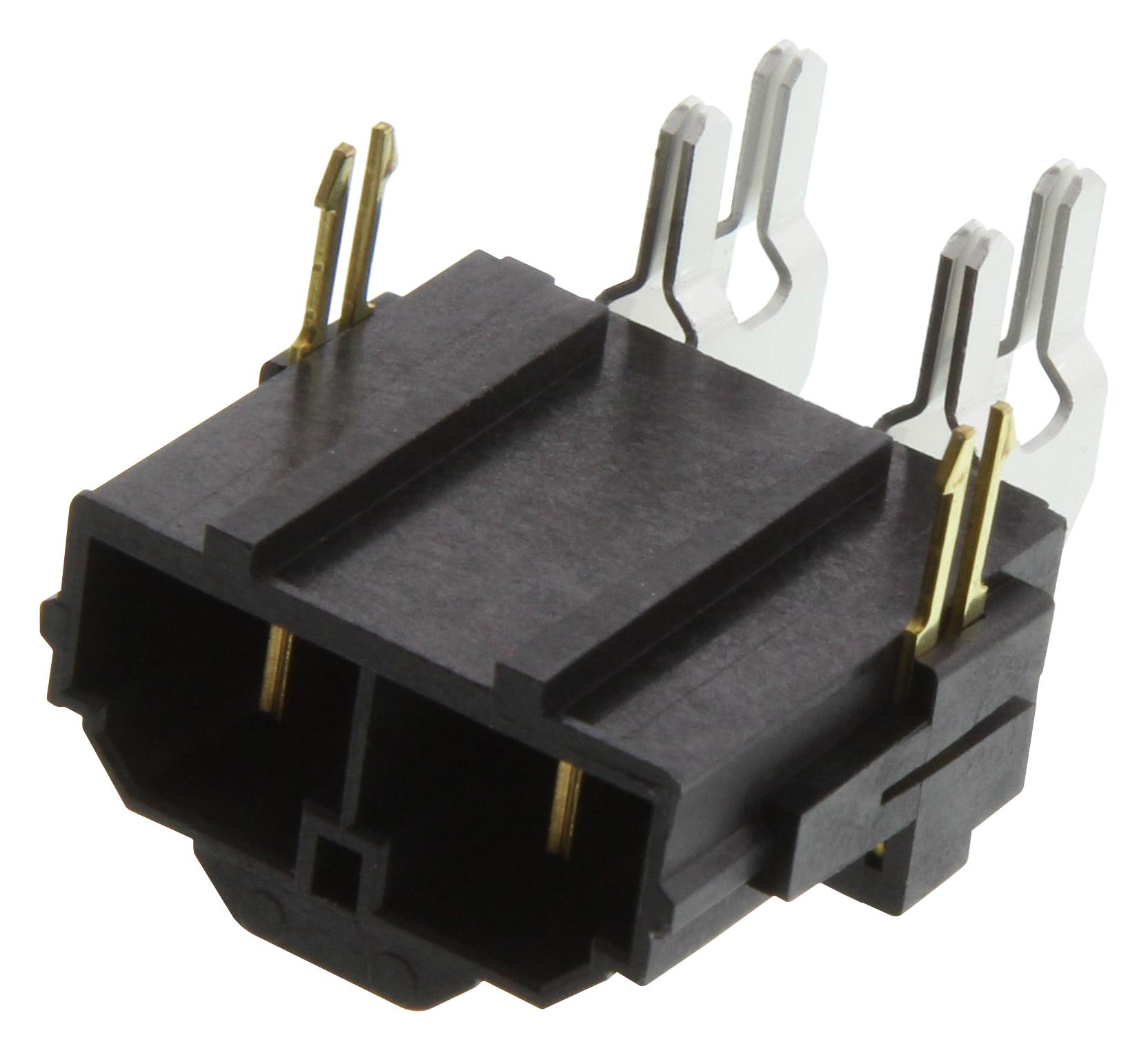

MOLEX 428205213 Mini-Fit Sr. Power Connector
The Mini-Fit Sr. Power Connectors are high-current connectors designed for power applications. These 10.00mm pitch headers feature a single row with a right-angle orientation and are suitable for PCB thickness of 1.57mm. With gold (Au) plating and a durable design, they support up to 5 circuits, providing reliable electrical connections in power and wire-to-board systems. Designed for harsh environments, these connectors are RoHS compliant, withstand temperatures from -40°C to +105°C, and have a maximum current rating of 50A per contact. Their robust construction ensures long-term performance and easy mating with compatible receptacles.
MOLEX 428205213 Mini-Fit Sr. Power Connector Specifications:
- Pitch: 10.00mm
- Number of Circuits: 5
- Maximum Circuits (Loaded): 5
- Color - Resin: Black
- Durability (Mating Cycles Max): 100
- Flammability: 94V-0
- Material - Metal: Brass
- Material - Plating Mating: Gold over Nickel
- Material - Plating Termination: Tin over Nickel
- Material - Resin: High Temperature Thermoplastic
- Temperature Range - Operating: -40°C to +105°C
- Electrical: Maximum Current per Contact: 50A, Maximum Voltage: 600V
- PCB Thickness - Recommended: 1.57mm
- PC Tail Length: 3.50mm
- Packaging: Tube
- Orientation: Right Angle
- Guide to Mating Part: yes
- Keying to Mating Part: yes
- Lock to Mating Part: yes
- Shrouded: no
- Stackable: no
- Surface Mount Compatible: no
- Polarized to Mating Part: yes
- Temperature Range - Operating: -40°C to +105°C
Buy the Molex Series Mini-Fit Sr Power Connectors: 428205213
Purchase the Molex Mini-Fit Sr Power Connector 428205213 online today for dependable high-current power connections. Featuring a 10.00mm pitch, 5 circuits, and gold plating, this right-angle connector is designed for durability and performance. Suitable for PCB mounting with a recommended thickness of 1.57mm, it supports up to 50A and 600V. Its RoHS compliance and robust thermoplastic body make it ideal for demanding industrial applications. Fast, secure, and easy to install—order now to enhance your power distribution systems efficiently.
Order your Molex Series Mini-Fit Sr Power Connector 428205213 today and ensure reliable high-current connections for your power projects.
