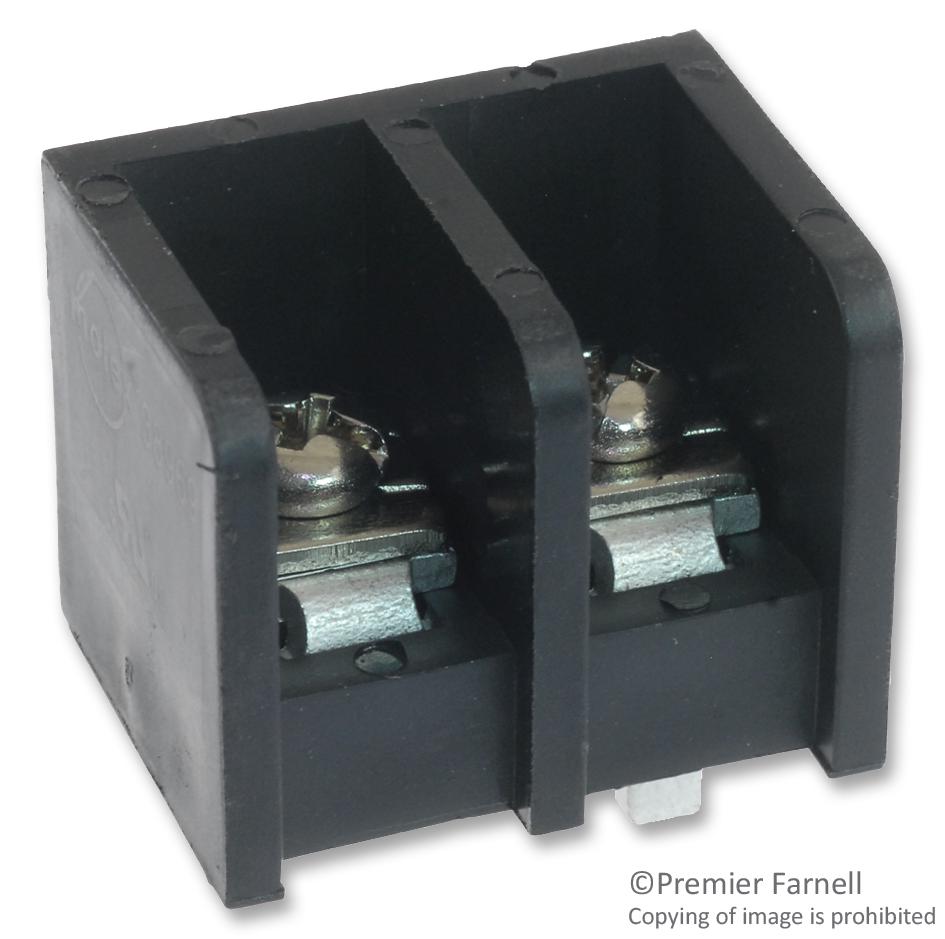

MOLEX 389690003 Terminal Strip
The 12.70mm pitch single row tri-barrier terminal strip offers a compact and reliable connection solution for industrial wiring. Designed without mounting ends, it supports three circuits at a 90° angle, with a maximum operating temperature of -40°C to +120°C. Made from high-quality materials, it features a 4.00mm PC tail length, a voltage rating of 600V, and a maximum current per contact of 50A. Suitable for wire sizes AWG 8 to 20, it is RoHS compliant and ideal for automation, control panels, and electrical distribution systems.
MOLEX 389690003 Terminal Strip Specifications:
- Pitch - Mating Interface: 12.70mm
- Pitch - Termination Interface: 12.70mm
- Number of Rows: 1
- Circuits: 3
- Circuits (Maximum): 3
- Entry Angle: 90°
- PC Tail Length: 4.00mm
- Wire Size AWG: 8-20
- Current - Maximum per Contact: 50.0A
- Voltage - Maximum: 600V
- Temperature Range - Operating: -40°C to +120°C
- Material: High-quality thermoplastic, UL certified
- RoHS Compliant: Yes
- Halogen-Free: Yes
- Low-Halogen: Yes
- PCB Thickness - Recommended: 1.57mm
- Panel Mount: No
- Surface Mount Compatible: No
Buy the Molex 389690003 – Reliable Terminal Strip for Industrial Applications
Purchase the Molex 389690003 terminal strip online today and enhance your electrical and automation projects with this durable, high-current, RoHS-compliant connector. Its 12.70mm pitch supports three circuits at a 90° angle, making it ideal for industrial control panels. The 4.00mm PC tail length ensures secure wiring connections, with voltage ratings up to 600V and current capacity of 50A per contact. Easy to install, environmentally compliant, and designed for a wide temperature range, it is your trusted component for efficient electrical systems.
Buy Molex 389690003 now and experience unmatched reliability and performance in industrial wiring and control systems.
Frequently Asked Questions
Where can I buy MOLEX 389690003?
You can click on the BUY or RFQ button to purchase 389690003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 389690003?
You can download the 389690003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 389690003?
MOLEX
