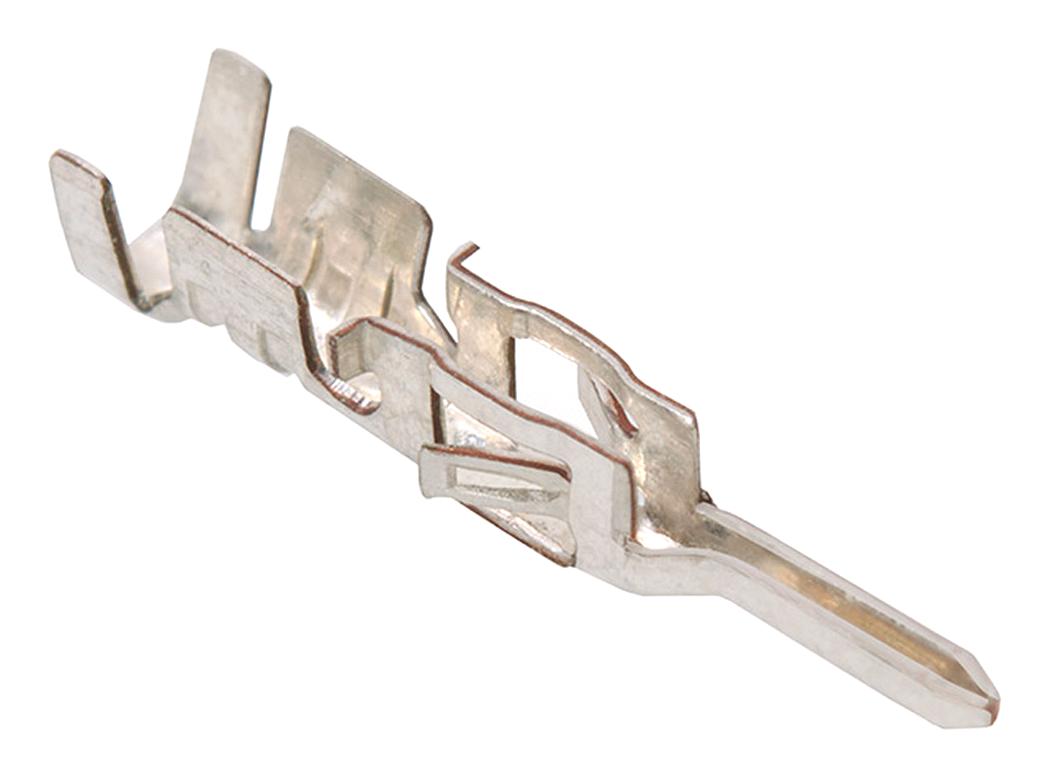

MOLEX 430310023 Crimp Terminal
The Micro-Fit 3.0 crimp terminal for male connections is designed for 18 AWG wires with a maximum insulation outside diameter of 0.073 inches or 1.85 mm. Made from phosphor bronze with gold plating on the mating contact and tin plating on the termination, it offers reliable electrical performance and corrosion resistance. Suitable for power and wiring applications, this terminal ensures secure crimping and durable connections, ideal for industrial, automation, and control systems. It comes reamed on a reel for easy handling and installation.
MOLEX 430310023 Crimp Terminal Specifications:
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Wire Size AWG: 18
- Wire Size mm: 1.02 mm
- Insulation Outside Diameter: 0.73 inches or 1.85 mm
- Maximum Insulation Diameter: 0.073 inches or 1.85 mm
- Current - Maximum per Contact: 8.5A
- Net Weight: 0.061 grams
- Packaging Type: Reel
- Termination Interface Style: Crimp or Compression
- Contact Material: Phosphor Bronze
- Plating Min - Mating: Gold
- Plating Min - Termination: Tin
- Dimensions: Max Insulation Diameter 0.073 inches, typical wire size 18 AWG, contact style male
Buy the Molex 0430310023 – Reliable Crimp Terminal for Industrial Applications
Purchase the Molex crimp terminal online today for secure, high-quality electrical connections in industrial settings. Designed for 18 AWG wires, it features gold and tin plating for corrosion resistance and reliable performance. The crimp terminal ensures a secure connection with easy installation on a reel for efficient handling. Ideal for power and wiring applications, it supports safe, durable connections in control systems, automation, and other industrial uses. Order now to ensure high-quality, long-lasting electrical performance in your projects.
Get Molex 0430310023 today—built for precision and long-lasting durability in electrical power connections.
