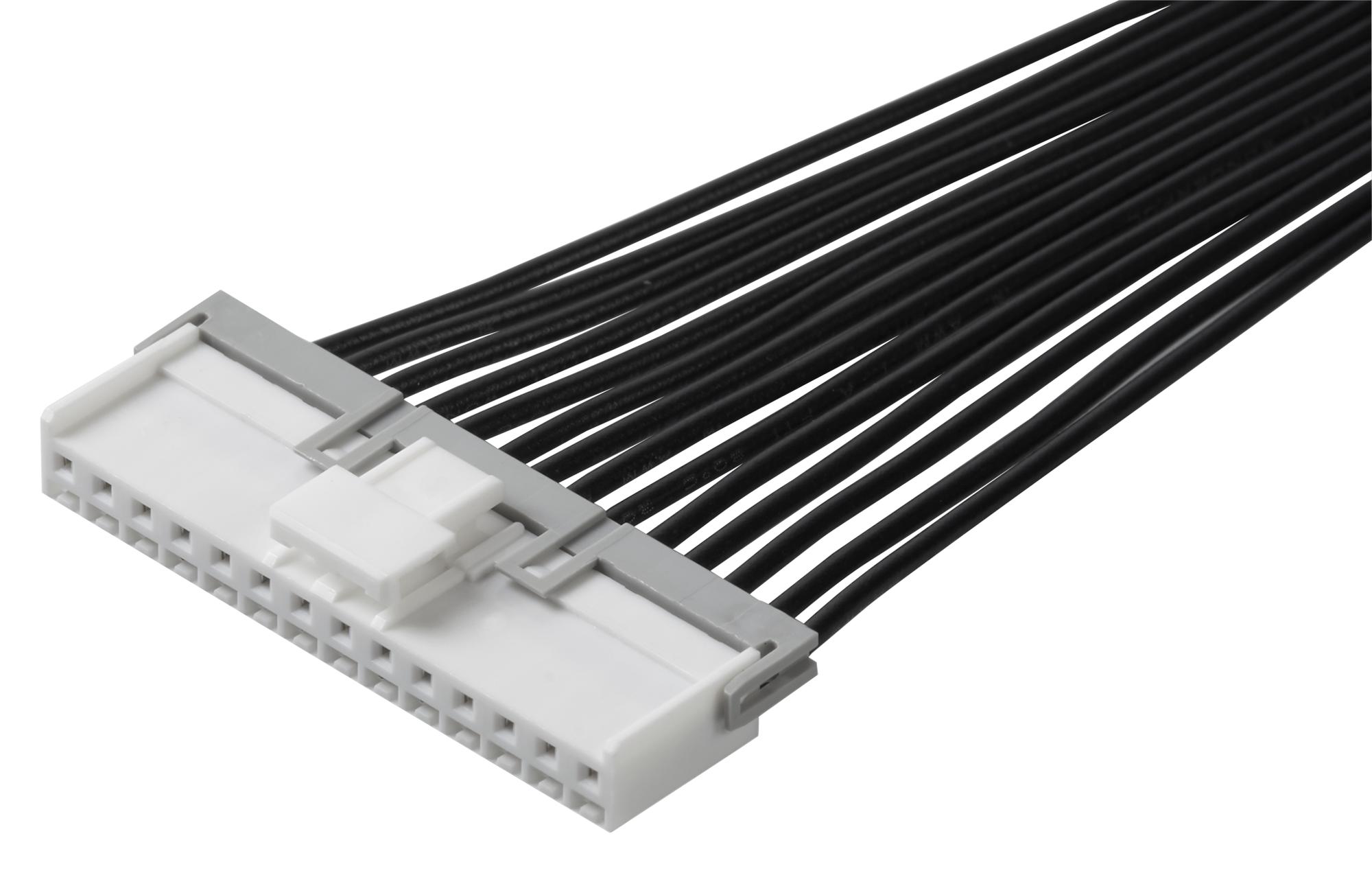

MOLEX 151370205 Mini-Lock Wire-to-Board Connector
The MOLEX 15137-0205 Mini-Lock wire-to-board connector assembly provides a robust and compact solution for signal transmission in various industrial applications. Designed with a 2.50mm pitch and a female-female configuration, this connector facilitates secure and efficient connections between wire and printed circuit boards. The natural polyester resin material ensures durability and resistance to environmental factors, making it suitable for demanding environments. It is commonly used in applications requiring reliable signal transfer and space-saving design.
MOLEX 151370205 Mini-Lock Wire-to-Board Connector Specifications:
- overview: Mini-Lock Wire-to-Board Connector System
- application: Signal, Wire-to-Board Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Lock-to-Mini-Lock
- cable_length: 450.00mm
- circuits_loaded: 2
- color_resin: Natural
- material_metal: Copper Alloy
- material_plating_mating: Matte Tin (0.889µm)
- material_plating_termination: Matte Tin
- material_resin: Polyester
- net_weight: 5.520/g
- packaging_type: Bag
- pitch_mating_interface: 2.50mm
- wire_size_awg: 22
- wire_cable_type: UL 1061
- voltage_maximum: 250V AC (RMS)/DC
- series: 15137
- mates_with: 53375, 53426
Buy the 15137-0205 MOLEX Mini-Lock Wire-to-Board Connector | myMectronic
Purchase the MOLEX 15137-0205 Mini-Lock Wire-to-Board Connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 151370205?
You can click on the BUY or RFQ button to purchase 151370205 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 151370205?
You can download the 151370205 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 151370205?
MOLEX
