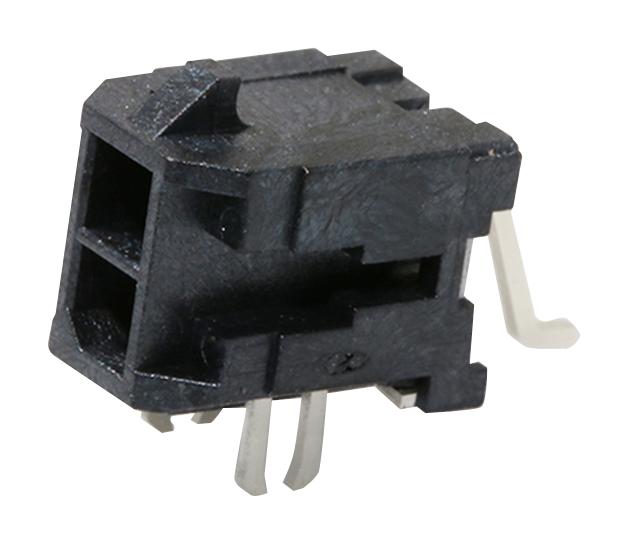

MOLEX 430450206 Micro-Fit Connector
The Micro-Fit 3.0 right-angle header with 3.00mm pitch is a dual-row, 2-circuit connector featuring a PCB press-fit metal retention clip, tin plating, and glow-wire capability. Made from high-temperature thermoplastic and resilient brass metal, it supports reflow soldering with a maximum temperature of 260°C. Suitable for power and wire-to-board applications, this connector offers durability up to 30 mating cycles, operating from -40°C to +105°C. Certified by UL and CSA, it complies with RoHS standards and is designed for reliable, high-performance connections in tight spaces.
MOLEX 430450206 Micro-Fit Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 2
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High-Temperature Thermoplastic
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 10.29mm
- Durability (Mating Cycles Max): 30
- Surface Mount Compatibility: Yes
- PCB Thickness - Recommended: N/A
- Maximum Process Temperature: 260°C (Reflow)
- Packaged as: Embossed Tape on Reel
- Number of Rows: 2
- Orientation: Right Angle
- PCB Locator: Yes
- PCB Retention: Yes
Buy the Buy Molex Micro-Fit 3.0 Part Number 430450206 Online
Purchase the Molex Micro-Fit 3.0 connector online today and enjoy a high-quality, reliable power connection solution suitable for power and wire-to-board applications. Featuring 3.00mm pitch, dual circuits, and glow-wire capability, this connector is perfect for ensuring safe and dependable connections in demanding environments. Manufactured from high-temperature thermoplastic with brass metal components, it supports up to 30 mating cycles and operates efficiently within a temperature range of -40°C to +105°C. Ideal for assembly in various electronic and electrical systems, this connector guarantees performance and durability in your projects.
Buy Molex 430450206 now and experience unmatched reliability and power efficiency with high-temperature resistance and secure PCB retention.
