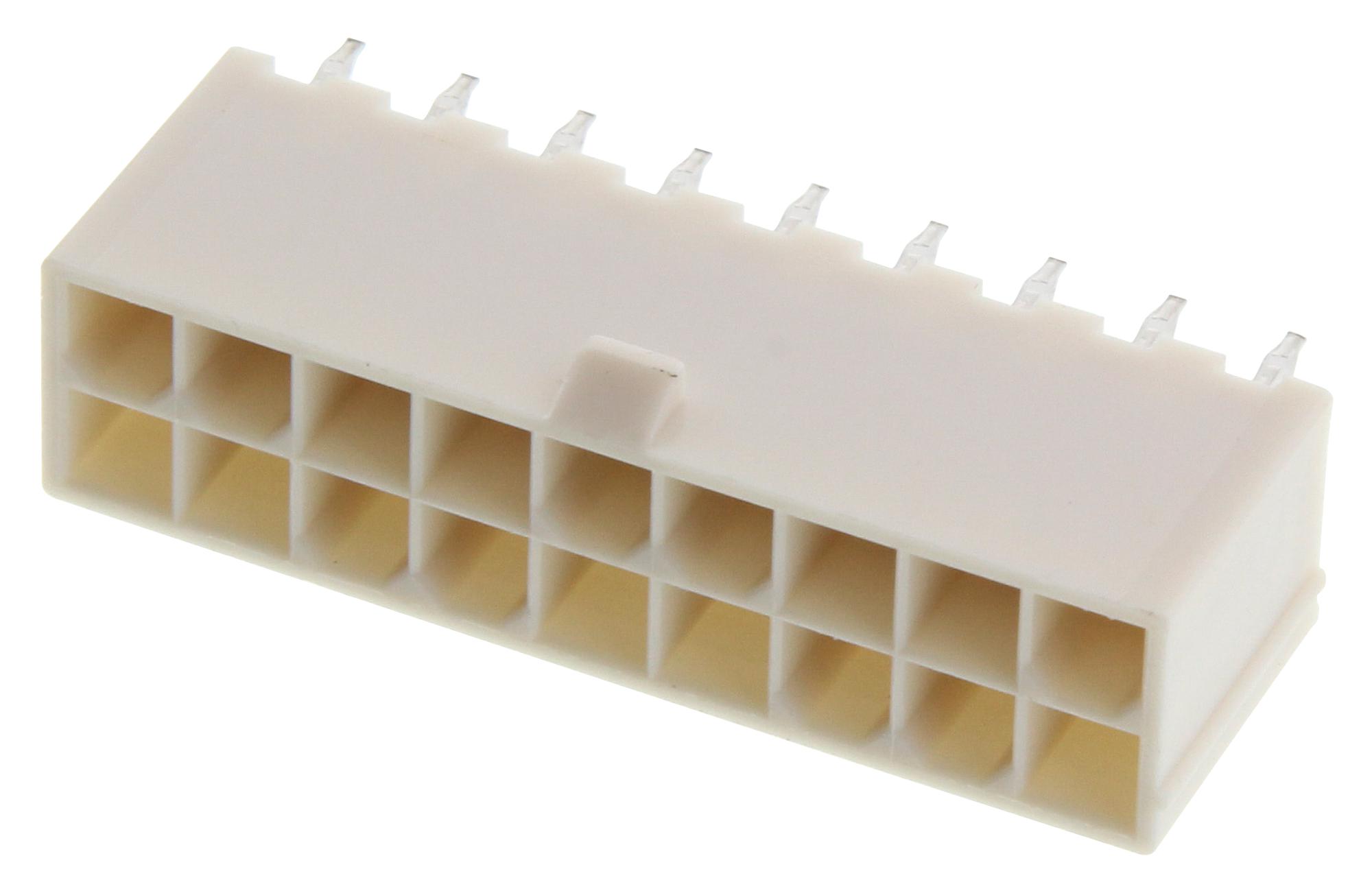

MOLEX 39296188 Power Connector
The Mini-Fit Jr. Power Connectors are versatile, high-current PCB headers designed for power applications. Featuring a 4.20mm pitch, dual-row configuration, and 18 circuits, these connectors are ideal for wire-to-board connections. Made from durable nylon resin with gold-plated brass contacts, they support up to 9A per circuit at 600V and operate within -40°C to +105°C. Their fully shrouded, through-hole termination ensures secure, reliable connections, suitable for various industrial power and automation projects requiring robust, high-current connections with a compact footprint.
MOLEX 39296188 Power Connector Specifications:
- Number of Circuits: 18
- Pitch: 4.20mm
- Color: Natural
- Material - Metal: Brass
- Material - Plating: Mating Gold, Termination Matte Tin
- Material - Resin: Nylon
- Dimensions: PC Tail Length 3.50mm
- Current per Contact: 9.0A
- Maximum Voltage: 600V
- Operating Temperature Range: -40°C to +105°C
- Flammability: 94V-0
- Durability (mating cycles): 30
- Contact Material: Brass
- PCB Thickness - Recommended: 1.60mm
- Packaging: Bag
- Surface Mount Compatible: No
- Polarization: Yes, to Mating Part and PCB
- Shrouded: Fully
- Termination Interface: Through Hole
- Max Process Temperature: 260°C
- RoHS, China RoHS, REACH compliant
- Agency Certifications: UL, CSA
Buy the Molex 0039296188 – Reliable Power Connectors for Industrial Applications
Purchase the Molex Mini-Fit Jr. power connector today online and enhance your power distribution projects. This 4.20mm pitch, dual-row connector supports 18 circuits with 9A per circuit at 600V, ensuring reliable, high-current connections. Made from durable nylon with gold-plated brass contacts, it operates over a wide temperature range from -40°C to +105°C. Its fully shrouded, through-hole design provides secure mating and long-lasting performance, ideal for industrial automation and power supply applications, all available for quick online purchase.
Order your Molex Series5566 0039296188 power connector today and ensure secure, high-current connections for your industrial applications.
Frequently Asked Questions
Where can I buy MOLEX 39296188?
You can click on the BUY or RFQ button to purchase 39296188 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39296188?
You can download the 39296188 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39296188?
MOLEX
