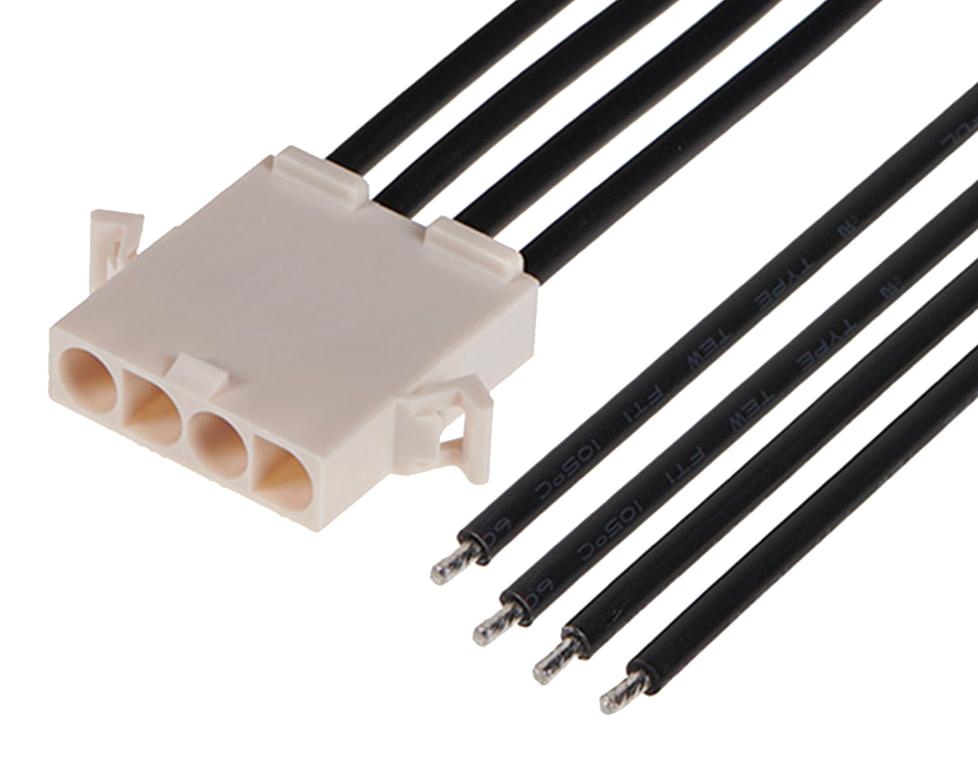

MOLEX 2162931043 Power Cable Assembly
The 216293 series is an off-the-shelf standard .093-inch male-to-pigtail cable assembly designed for flexible, reliable connections in electronic, data, and communication systems. It features various cable lengths up to 600mm, supporting up to 12A current and 600V maximum voltage. Made of durable nylon with tin-plated brass contacts, it supports up to 25 connection cycles and operates between -40°C and +105°C. Suitable for consumer electronics, networking, and industrial applications, these assemblies include keying features to prevent incorrect mating and facilitate easy installation.
MOLEX 2162931043 Power Cable Assembly Specifications:
- Cable Length: 600.00mm
- Circuits (Loaded): 4
- Color - Resin: Natural
- Gender: Male-Pigtail
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Current - Maximum per Contact: 12.0A
- Voltage - Maximum: 600V AC/DC
- Wire Insulation Diameter: 6.70mm
- Wire Size AWG: 14
- Operating Temperature Range: -40°C to +105°C
- Connection Cycles: Up to 25
- Insulation Material: Nylon
- Termination Style: Crimp or Compression
- Assembly Configuration: Connector to Connector
- Application: Power, Wire-to-Board, Wire-to-Wire
Buy the Molex Series 216293 Power Cable Assembly: 2162931043
Order the Molex 216293 Cable Assembly online today to ensure seamless and reliable connections in your electronic, data, and industrial applications. This versatile assembly, with a 600mm length and supports up to 12A current and 600V maximum voltage, features brass contacts with tin plating for durability. Its nylon body withstands temperatures from -40°C to +105°C and supports up to 25 connection cycles. Perfect for consumer electronics, communication devices, and industrial wiring, this assembly offers a secure, easy-to-mount connection that guarantees longevity and consistent performance.
Buy Molex 2162931043 power cable assembly now and experience unmatched reliability and performance for your electronic, data, and networking projects.
Frequently Asked Questions
Where can I buy MOLEX 2162931043?
You can click on the BUY or RFQ button to purchase 2162931043 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162931043?
You can download the 2162931043 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162931043?
MOLEX
