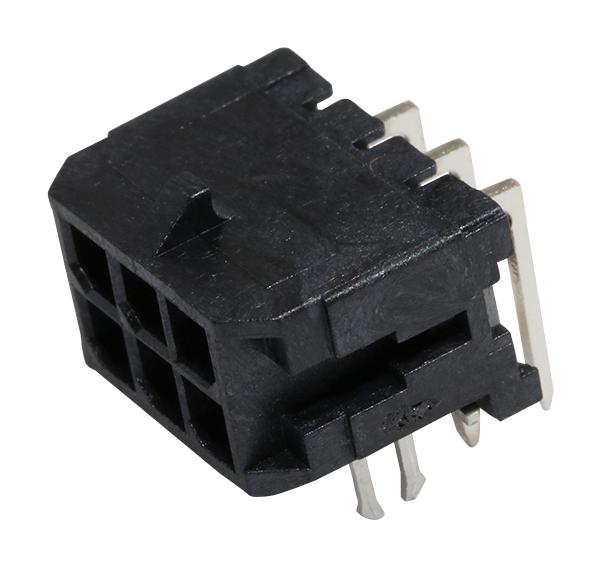

MOLEX 430450623 Micro-Fit Connector
The Micro-Fit 3.0 right-angle header is a high-quality PCB connector with a 3.00mm pitch, dual row, six circuits, and gold-plated contacts. Constructed from high-temperature thermoplastic, it features PCB press-fit metal retention, and supports wire-to-board power applications. The connector is UL E29179, CSA LR19980 certified, and compliant with RoHS, China RoHS, and Halogen-Free standards. It withstands operating temperatures from -40°C to +105°C, has a maximum current of 8.5A per contact, and a voltage rating of 600V, ensuring durability and safety in electrical assemblies.
MOLEX 430450623 Micro-Fit Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 6
- Color: Black
- Material - Resin: High Temperature Thermoplastic
- Material - Metal: Brass
- Plating - Contacts: Gold
- Termination Material - Plating: Tin
- Mating Height: 10.06mm
- Maximum Mating Cycles: 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Operating Temperature Range: -40°C to +105°C
- Current - Max: 8.5A
- Voltage - Max: 600V
- Contact Style: Through Hole
- Packaging: Tray
- Mating Interface Pitch: 3.00mm
Buy the Buy Molex Micro-Fit 3.0 Part Number 0430450623 Online
Purchase the Molex Micro-Fit Connector today for your power and wire-to-board needs. Designed with a 3.00mm pitch, dual-row configuration, and gold-plated contacts, this connector offers excellent durability and electrical performance. Made from high-temperature thermoplastic, it features PCB press-fit metal retention for secure connections. Suitable for applications requiring UL and RoHS compliance, operating from -40°C to +105°C, with a maximum current of 8.5A and voltage of 600V, ensuring safe, reliable, and long-lasting operation in various electrical systems.
Get Molex 0430450623 today—built for high-temperature durability and reliable power distribution in your PCB assemblies.
Frequently Asked Questions
Where can I buy MOLEX 430450623?
You can click on the BUY or RFQ button to purchase 430450623 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430450623?
You can download the 430450623 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430450623?
MOLEX
