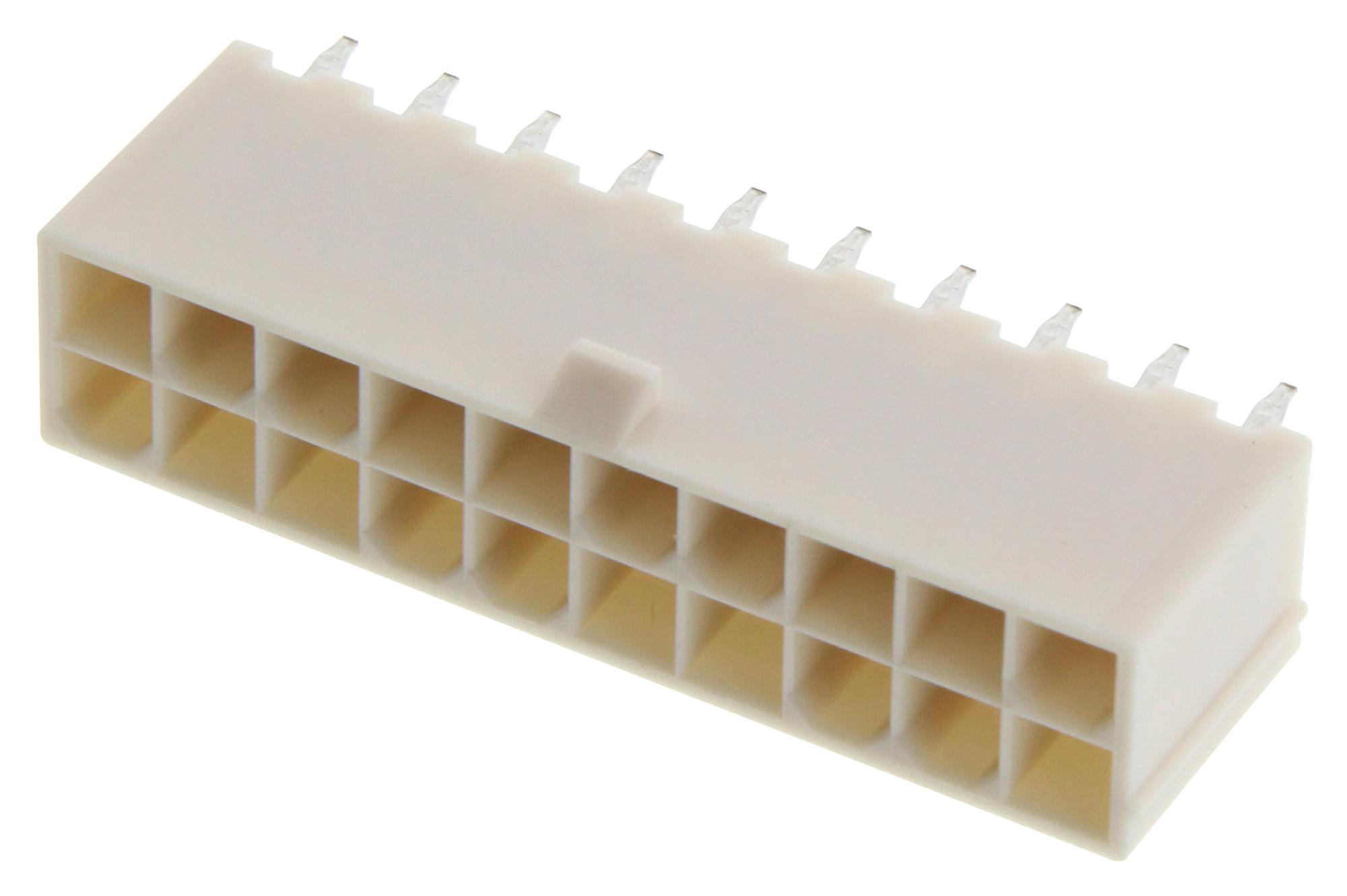

MOLEX 39296208 Power Connector
The Mini-Fit Jr. Power Connectors are versatile power connectors designed for wire-to-board applications. They feature a 4.20mm pitch, dual-row configuration with 20 circuits and a temperature range of -40°C to +105°C. Made from nylon resin with gold and matte tin plating, these connectors offer reliable electrical performance with a maximum current of 9.0A per contact and a voltage rating of 600V. Compatible with standard Mini-Fit female terminals, they support up to 30 mating cycles and are suitable for power and wire management in a range of electronic devices and industrial equipment.
MOLEX 39296208 Power Connector Specifications:
- Pitch: 4.20mm
- Number of Circuits: 20
- Number of Rows: 2
- Wire Range: Suitable for 1.60mm PCB thickness
- Maximum Current: 9.0A per contact
- Maximum Voltage: 600V
- Operating Temperature Range: -40°C to +105°C
- Material: Nylon resin with brass metal parts
- Plating: Gold (mating), Matte Tin (termination)
- Mating Cycles: Up to 30
- Flammability: 94V-0
- Locking: Yes
- Polarized: Yes to PCB and mating part
- Connector Orientation: Vertical
- Dimensions: PCB tail length approximately 3.50mm
- Packaging: Bag, RoHS and Low-Halogen compliant
Buy the Molex Series 5566 Mini-Fit Jr Power Connectors: 39296208
Enhance your electronic or industrial applications with the reliable Molex Series 5566 Mini-Fit Jr. power connector. Designed for wire-to-board power connections, this 20-circuit, dual-row connector offers a 4.20mm pitch, supporting up to 9A per contact at 600V. Its nylon construction withstands temperatures from -40°C to +105°C, ensuring durability and safety for demanding environments. Compatible with standard mini-fit female terminals, it features a lock mechanism for secure connection and supports up to 30 mating cycles. Purchase online today to secure quality and performance for your power distribution needs.
Order your Molex Series 5566 Mini-Fit Jr. power connector today and ensure reliable power distribution in your electronic projects with high current capacity.
Frequently Asked Questions
Where can I buy MOLEX 39296208?
You can click on the BUY or RFQ button to purchase 39296208 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39296208?
You can download the 39296208 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39296208?
MOLEX
