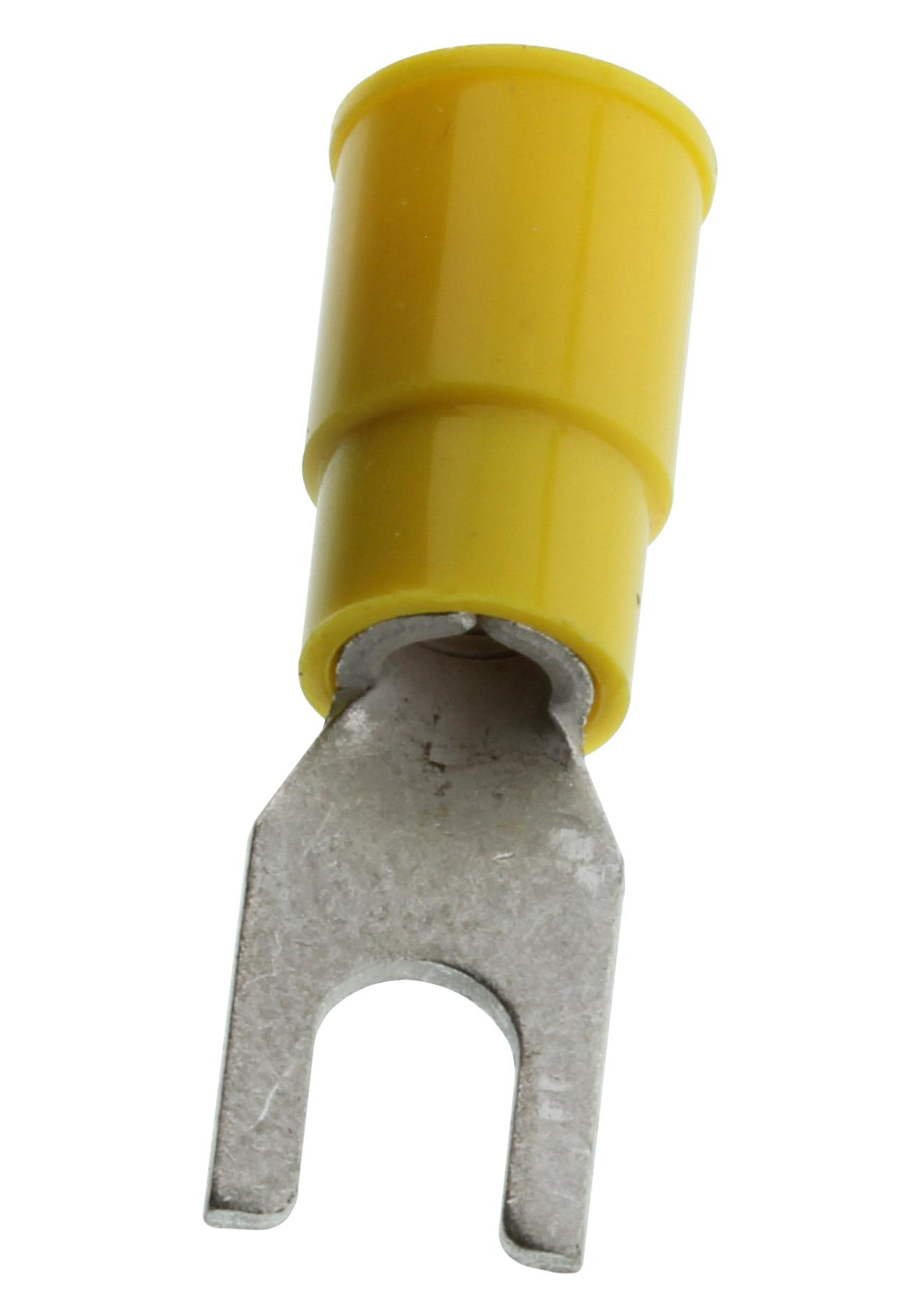

MOLEX 191310004 InsulKrimp Spade Block Terminal
The MOLEX 19131-0004 InsulKrimp Spade Block Terminal is a solderless terminal designed for secure and reliable connections in various industrial applications. This terminal is specifically engineered for 10 to 12 AWG wire, offering a robust and efficient solution for electrical connections. Its InsulKrimp design ensures a tight and secure fit, while the stud size of 8 (M4) provides compatibility with a wide range of applications. The natural closed barrel construction enhances durability and prevents corrosion, making it suitable for demanding environments. This terminal is a key component in automotive, appliance, and industrial wiring systems.
MOLEX 191310004 InsulKrimp Spade Block Terminal Specifications:
- Series: 19131
- Product Family: Ring and Spade Terminals
- Crimp Quality: Yes
- Mil-Spec: N/A
- Product Name: InsulKrimp Spade Block
- UPC: 800753101272
- Barrel Type: Closed
- Color - Resin: Natural
- Flammability: 94V-0
- Insulation Material: PVC
- Plating: Tin
- Plating min - Mating: 0.305µm
- Plating min - Termination: 0.305µm
- Stud Size: 8 (M4)
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 6.40mm max.
- Wire Size AWG: 10, 12
- Wire Size mm²: 3.30-5.00
- Lead-freeProcess Capability: N/A
- Engineering Number: C-2105-08X
- EU ELV: Not Relevant
- EU RoHS: Compliant
- China RoHS: Green Image
- REACH SVHC: Contained Per ED/88/2018 (15 January 2019) Di-(2-ethylhexyl)phthalate (DEHP)
- Halogen-Free Status: Not Low-Halogen
- Application Tooling - PremiumGrade Hand Crimp Tool: 640010100
- Application Tooling - Hand Crimp Tool: 640010300
- Application Tooling - Crimp Head for the AT-200 Pneumatic Hand Tool: 640050300
