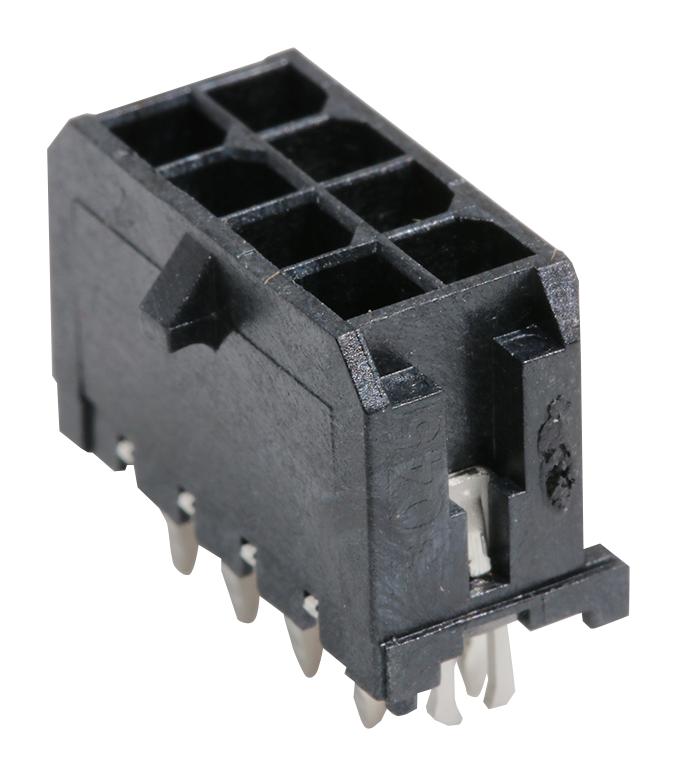

MOLEX 430450826 Power Connector
The Micro-Fit 3.0 Vertical Header is a high-temperature, PCB-mounted power connector with a 3.00mm pitch, dual row configuration, and 8 circuits. Made from UL 94V-0 rated thermoplastic, it features gold-plated brass contacts, tin plating, and a black resin. Its design supports wire-to-board power applications, with a maximum current of 8.5A and voltage of 600V. The connector is shrouded, stackable, polarized, and has a maximum operating temperature range of -40°C to +105°C, providing reliable electrical interconnections for demanding environments.
MOLEX 430450826 Power Connector Specifications:
- Current: 8.5A
- Voltage: 600V
- Pitch: 3.00mm
- Number of Circuits: 8
- Material - Resin: High Temperature Thermoplastic
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Mated Height: 17.64mm
- Temperature Range: -40°C to +105°C
- Flammability: UL 94V-0
- Color - Resin: Black
- Durability (mating cycles max): 30
- Surface Mount Compatibility: Yes
- Polarized to PCB: Yes
- Stackable: Yes
- Shrouded: Yes
- PCB Thickness - Recommended: 1.60mm
- PCB Locator: Yes
- PCB Retention: Yes
Buy the Molex Series 43045 Micro-Fit Power Connector: 0430450826
Get the Molex Micro-Fit 3.0 vertical power connector online today. It offers high current capacity, robust construction, and precise PCB press-fit assembly, ensuring durable, secure electrical connections suitable for power management, automation, and industrial applications. Its gold-plated contacts and thermoplastic body guarantee excellent performance even in challenging environments, with a maximum current of 8.5A and a voltage of 600V. Order now to enhance your electronic systems with quality connectors designed for reliability and safety.
Order your Molex Series 43045 Micro-Fit Power Connector today and secure reliable power connections for demanding electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 430450826?
You can click on the BUY or RFQ button to purchase 430450826 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430450826?
You can download the 430450826 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430450826?
MOLEX
