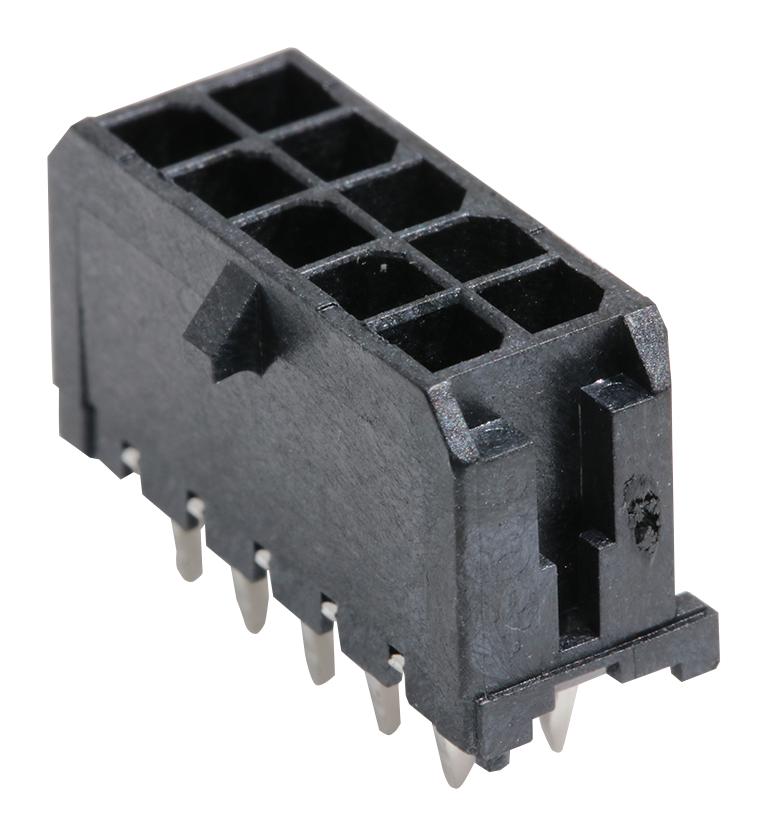

MOLEX 430451014 Micro-Fit 3.0 Vertical Header
The MOLEX 43045-1014 Micro-Fit 3.0 Vertical Header is a robust and reliable connector solution for power and wire-to-board applications. Designed with a dual-row configuration and 10 circuits, this header offers a secure and efficient connection. Its 3.00mm pitch and offset through-hole mounting design facilitate easy integration into various PCB layouts. Manufactured with high-temperature thermoplastic and gold-plated mating contacts and tin-plated termination contacts, the 43045-1014 ensures excellent conductivity and durability. It is Glow-Wire Capable and complies with international safety standards, making it suitable for a wide range of industrial and consumer applications.
MOLEX 430451014 Micro-Fit 3.0 Vertical Header Specifications:
- Product Family: Micro-Fit 3.0 Connector System
- Description: Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 10 Circuits, with PCB Polarizing Peg, Gold, Glow-Wire Capable, Black
- Circuits (Loaded): 10
- Circuits (maximum): 10
- Color - Resin: Black
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 17.64mm
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Number of Rows: 2
- Orientation: Vertical
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 0.762µm
- Polarized to PCB: Yes
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: -40° to +105°C
- Termination Interface: Style: Through Hole - Kinked Pin
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Duration at Max. Process Temperature (seconds): 030
- Lead-freeProcess Capability SMC&WAVE Max. Cycles at Max. Process Temperature: 003
- Process Temperature max. C: 260
- Mates With: Micro-Fit 3.0 Receptacle Housing 43025, Micro-Fit 3.0 TPA Receptacle Housing 172952
