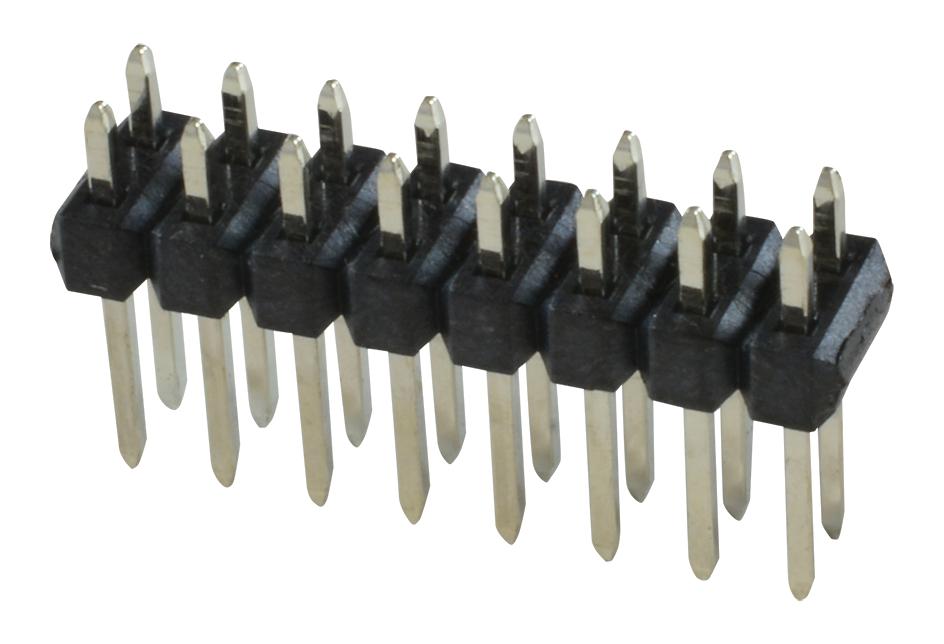

MOLEX 10897080 C-Grid Connector
The 2.54mm Pitch C-Grid Breakaway Header is a high-temperature, dual-row, vertical connector designed for reliable PCB connection in various electronic applications. It features 8 circuits with 0.76um gold selective plating and tin PC tail plating for durability and corrosion resistance. Crafted from high-temperature thermoplastic, it supports up to 50 mating cycles, withstands temperatures from -40°C to +105°C, and complies with RoHS andUL standards. Its compact design includes a 2.54mm pitch, vertical orientation, and PCB tail length of 2.79mm, suitable for board-to-board signal connections.
MOLEX 10897080 C-Grid Connector Specifications:
- Pitch: 2.54mm
- Number of Circuits: 8
- Maximum Circuits (Loaded): 8
- Color - Resin: Black
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Temperature Range - Operating: -40°C to +105°C
- Durability (mating cycles max): 50
- Flammability: 94V-0
- Guide to Mating Part: None
- Lock to Mating Part: No
- Net Weight: 0.485g
- Orientation: Vertical
- PC Tail Length: 2.79mm
- PCB Thickness - Recommended: 1.60mm
- Termination Interface: Through Hole
- Agency Certifications: CSA, UL
- RoHS and REACH compliant
Buy the Molex Series 70280 C-Grid Breakaway Header: 10897080
Purchase the Molex C-Grid connector 10897080 online today and ensure a secure, high-quality connection for your electronic projects. Designed with a 2.54mm pitch and dual-row configuration, this high-temperature, RoHS and UL compliant connector features durable gold and tin plating for long-lasting performance. Its vertical mount design with a PCB tail length of 2.79mm simplifies assembly and maximizes space efficiency. Ideal for board-to-board signal connections, offering up to 50 mating cycles and operating effectively between -40°C and +105°C, this connector guarantees reliability in demanding environments.
Buy Molex 10897080 high-temperature breakaway header now and experience unmatched reliability and performance in your PCB connections.
Frequently Asked Questions
Where can I buy MOLEX 10897080?
You can click on the BUY or RFQ button to purchase 10897080 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 10897080?
You can download the 10897080 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 10897080?
MOLEX
