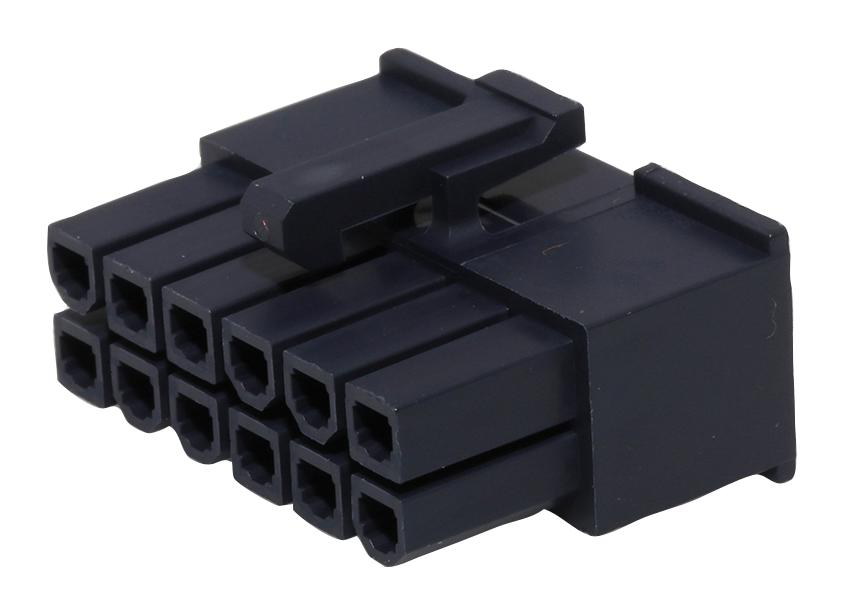

MOLEX 469921210 Mini-Fit Jr. Power Connector
The MOLEX 46992-1210 Mini-Fit Jr. Power Connector is a robust receptacle housing ideal for power applications, including wire-to-board and wire-to-wire connections. Constructed from PA Nylon 6/6, it provides excellent insulation and durability. This connector features a dual-row design with 12 circuits, making it suitable for applications requiring multiple connections. It is glow-wire capable and polarized to the mating part, ensuring proper alignment and secure connections. Its compact design and ease of use make it a popular choice for a wide range of industrial and consumer electronics applications.
MOLEX 469921210 Mini-Fit Jr. Power Connector Specifications:
- series: 46992
- application: Power, Wire-to-Board, Wire-to-Wire
- circuits_maximum: 12
- color_resin: Black
- flammability: 94V-2
- gender: Receptacle
- glow_wire_capable: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 2.688
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 4.20
- pitch_termination_interface_mm: 4.20
- polarized_to_mating_part: Yes
- ports_stackable: No
- temperature_range_operating_c: -40 to +105
- current_maximum_per_contact_a: 13.0
- lead_free_process_capability: N/A
- elv_not_relevant: Not Relevant
- rohs_compliant: Compliant
- china_rohs: Not Contained
- halogen_free_status: Low-Halogen
- upc: 887191637877
Buy the 46992-1210 MOLEX Mini-Fit Jr. Power Connector | myMectronic
Purchase the MOLEX 46992-1210 Mini-Fit Jr. Power Connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 469921210?
You can click on the BUY or RFQ button to purchase 469921210 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 469921210?
You can download the 469921210 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 469921210?
MOLEX
