MOLEX 430451225 Power Header

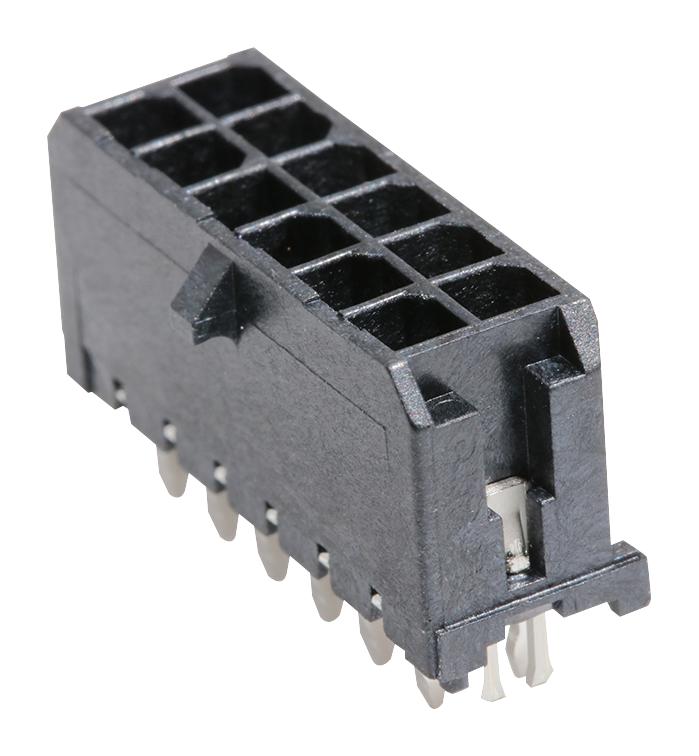

The Micro-Fit 3.0 Vertical Header with a 3.00mm pitch is a high-temperature, dual-row, power connector designed for wire-to-board applications. Constructed from UL 94V-0 rated thermoplastic with a gold-plated metal component, it offers excellent durability up to 105°C and supports up to 8.5A per contact at 600V. Featuring PCB press-fit, offset through-hole mounting, and a shrouded, stackable design, it ensures reliable connections in power and electronic applications while meeting RoHS and UL certifications.
MOLEX 430451225 Power Header Specifications:
- Pitch: 3.00mm
- Material: High temperature thermoplastic
- Metal: Gold-plated contacts
- Current Rating: 8.5A per contact
- Voltage Rating: 600V
- Operating Temperature: -40°C to +105°C
- Mounting Style: Offset through-hole, PCB press-fit
- Number of Circuits: 12
- Color - Resin: Black
- Durability: Up to 260 mating cycles
- Flammability: UL 94V-0 rated
- Glow-Wire Capable: Yes
- Mated Height: 3.81mm
- Net Weight: 1.79g per unit
Buy the Buy Molex Micro-Fit 3.0 Part Number 0430451225 Online
Purchase the Molex Micro-Fit 3.0 Power Header online today to benefit from a high-temperature, durable power connection solution. This 12-circuit vertical header features gold-plated contacts, offset through-hole mounting, and a stackable design suitable for wire-to-board applications. It supports up to 8.5A per contact at 600V, ideal for various electronic and power devices. Easy to install with PCB press-fit and shrouded features, this connector ensures reliable, long-lasting performance while meeting industry safety standards and certification requirements.
Order your Molex Series Micro-Fit 3.0 0430451225 today and ensure reliable power connections with high-temperature durability for your projects.
