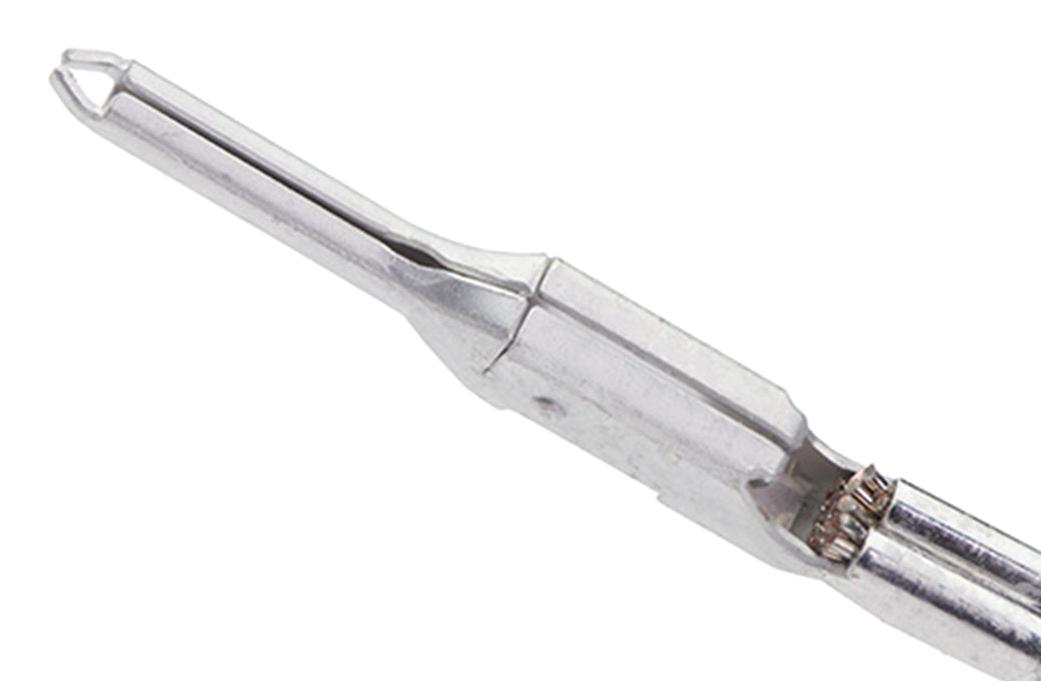

MOLEX 2077760001 Squba Plug Terminal
The MOLEX 207776-0001 Squba Plug Terminal is a robust and reliable crimp terminal designed for sealed wire-to-wire connections. It's part of the Squba series, known for its durability and performance in demanding environments. This terminal is suitable for power and signal applications, offering a secure connection for 16 AWG wire. The matte tin plating provides excellent corrosion resistance, ensuring long-term reliability. It's commonly used in automotive, industrial automation, and other applications requiring robust and sealed connections.
MOLEX 2077760001 Squba Plug Terminal Specifications:
- Product Family: Crimp Terminals
- Series: 207776
- Application: Power, Signal, Wire-to-Wire
- Crimp Quality Equipment: Yes
- Datasheet Order No: 987651-7401
- Overview: Squba Sealed Wire-to-Wire Connectors
- UPC: 191130144761
- Durability (mating cycles max): 25
- Gender: Male
- Material - Metal: Copper Alloy
- Material - Plating: Matte Tin
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.90mm-2.40mm
- Wire Size AWG: 16
- Wire Size mm²: N/A
- Current - Maximum per Contact: 14.0A
- Voltage - Maximum: 600V
- Net Weight: 0.510/g
- Packaging Type: Reel
- EU ELV: Not Relevant
- EU RoHS: Compliant
- China RoHS: Not Contained Per - ED/71/2019 (16 July 2019)
- Halogen-Free Status: Low-Halogen
- Use With: Squba 3.6 Plug Housing 207778
Buy the 207776-0001 MOLEX Squba Plug Terminal | myMectronic
Purchase the MOLEX 207776-0001 Squba Plug Terminal securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2077760001?
You can click on the BUY or RFQ button to purchase 2077760001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2077760001?
You can download the 2077760001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2077760001?
MOLEX
