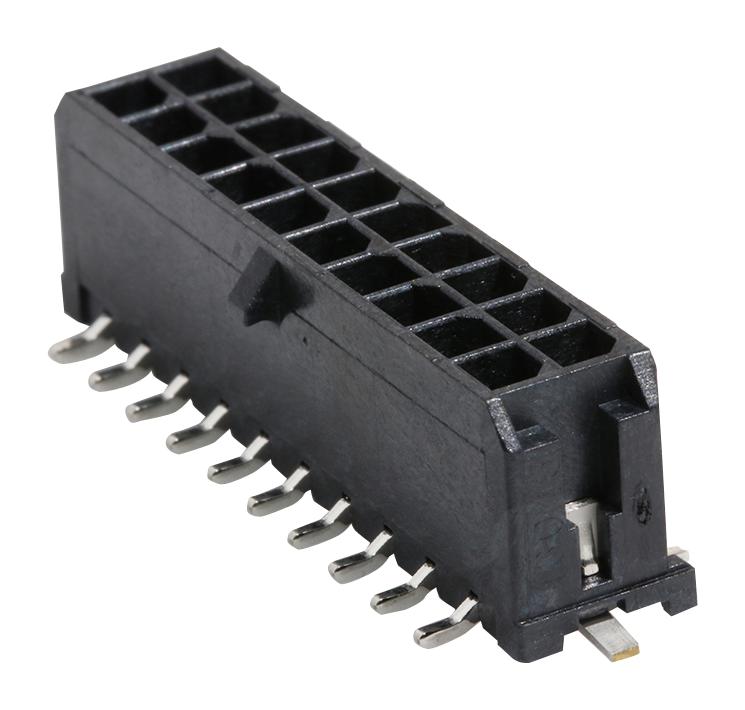

MOLEX 430452019 Micro-Fit Connector
The Micro-Fit 3.0 Vertical Header offers a 3.00mm pitch, dual-row configuration with 20 circuits, gold-plated contacts, and a solder tab design. Made from high-temperature thermoplastic, it supports a temperature range of -40°C to +105°C, and is compliant with RoHS and UL safety standards. Its compact size and durability ensure reliable power and wire-to-board connections suitable for various electronic applications, including household appliances and industrial equipment. The connector's glow wire capability enhances safety in fire-prone environments, making it ideal for demanding electrical systems.
MOLEX 430452019 Micro-Fit Connector Specifications:
- Pitch: 3.00mm
- Number of circuits: 20
- Material: High-temperature thermoplastic
- Color: Black
- Max. current per contact: 8.5A
- Max. voltage: 600V
- Operating temperature: -40°C to +105°C
- Resistance to heat and fire: Glow-wire ignition temp of at least 775°C, flammability index above 850°C
- Mated height: 1.60mm
- Surface Mount compatible: Yes
- Durability: Up to 50 mating cycles
- RoHS and UL compliant, Halogen-Free, REACH SVHC: Not contained
- Packaging: Embossed tape on reel
- Application: Power, wire-to-board
- Shrouded, stackable, polarized to PCB
- PCB hole size: 0.381 mm
Buy the Molex Series Micro-Fit 3.0 Connector: 4300452019
Purchase the Molex Series Micro-Fit 3.0 connector 4300452019 online today and ensure your electronic projects benefit from reliable, high-quality power connections. This vertical connector features a 3.00mm pitch, 20 circuits, and gold-plated contacts for enhanced durability and corrosion resistance. Made from high-temperature thermoplastic, it withstands operating temperatures up to 105°C, meeting RoHS and UL safety standards. Its compact design with stackable and polarized features makes it ideal for power applications across household and industrial electronics, delivering safety and long-term performance.
Order your Molex Series Micro-Fit 3.0 4300452019 today and give your projects the dependable quality and safety features they deserve.
Frequently Asked Questions
Where can I buy MOLEX 430452019?
You can click on the BUY or RFQ button to purchase 430452019 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430452019?
You can download the 430452019 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430452019?
MOLEX
