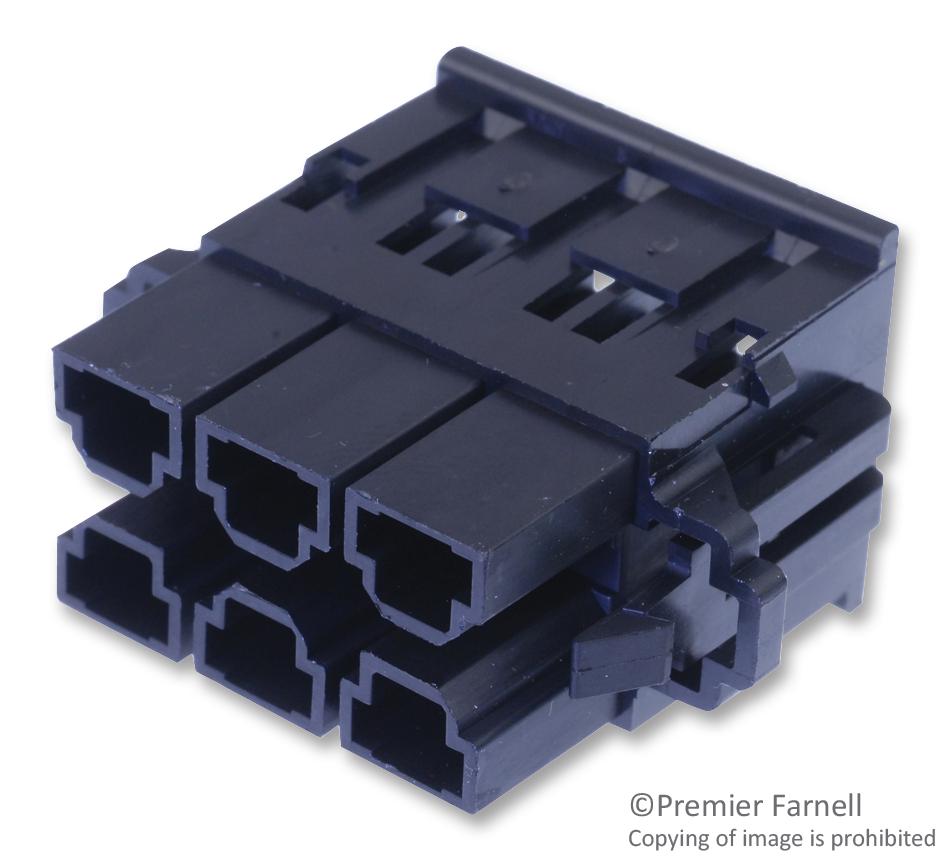

MOLEX 439141103 Power Receptacle Housing
The Mini-Fit Sr. Power Receptacle Housing features a 10.00mm pitch with dual rows and 10 circuits designed for power connections. Crafted from polyester, it has a flammability rating of 94V-0 and operates within a temperature range of -40°C to +105°C. This black, wire-to-board connector is UL and CSA certified, capable of handling a maximum current of 50.0A per contact, making it ideal for high-power applications. It is used with compatible crimp housings and terminals for reliable electrical connections in various electronic and power systems.
MOLEX 439141103 Power Receptacle Housing Specifications:
- Pitch - Mating Interface: 10.00mm
- Circuits (maximum): 10
- Color - Resin: Black
- Flammability: UL 94V-0
- Material - Resin: Polyester
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 50.0A
- Certification: UL Listed, CSA Certified
- Net Weight: 17.063 grams
- Package Type: Bag
Buy the Molex Series Mini-Fit Sr. Power Connector: 0439141103
Upgrade your power connections with this reliable Molex Power Receptacle Housing featuring a 10.00mm pitch, dual rows, and 10 circuits. Crafted from durable polyester with UL and CSA certification, it withstands temperatures from -40°C to +105°C and handles currents up to 50A per contact. Its black flammability-rated body ensures safety and long-lasting performance. Perfect for wire-to-board and wire-to-wire applications, this connector housing guarantees secure connections, making it an essential choice for industrial, electronic, and power systems requiring high-current capacity and dependable operation.
Get Molex 0439141103 today—engineered for high-power reliability and durability in electronic and power systems.
Frequently Asked Questions
Where can I buy MOLEX 439141103?
You can click on the BUY or RFQ button to purchase 439141103 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 439141103?
You can download the 439141103 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 439141103?
MOLEX
