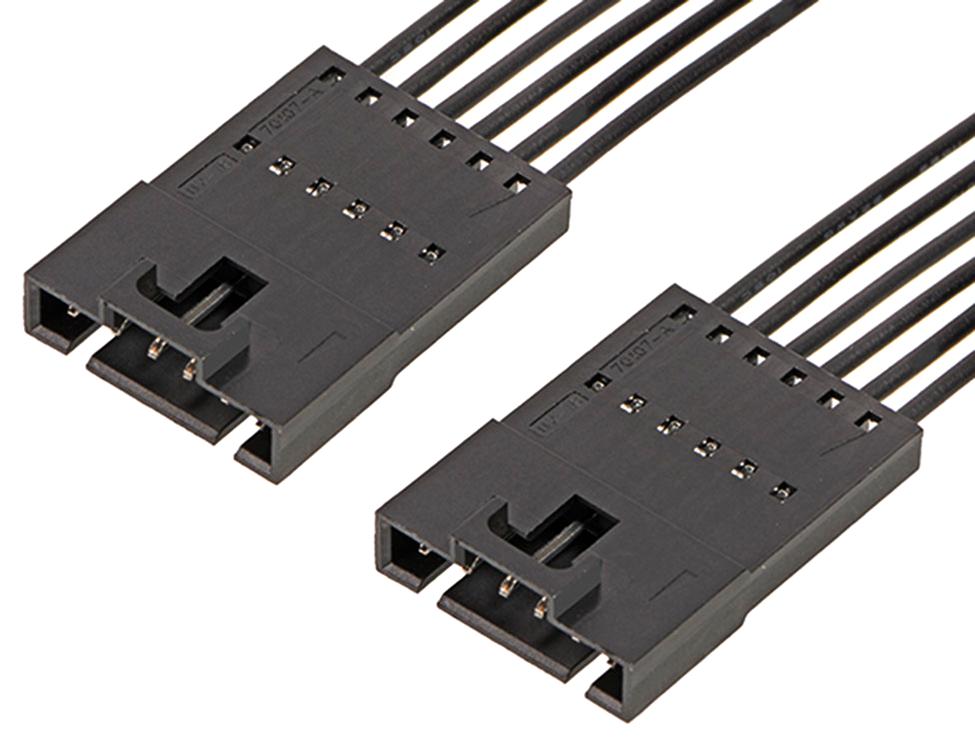

MOLEX 2162721064 Stackable Cable Assembly
This off-the-shelf stackable linear positive-lock cable assembly supports prototyping and mass production across various electronics sectors. Featuring discrete wire, FFC, and IDT termination options, it offers reliable electrical performance with two contact points for redundancy. The assembly includes a locking mechanism for vibration resistance and a split-peg PCB header for secure mounting. Constructed with a polyester alloy housing, phosphor bronze contacts, and tin plating, it operates from -40°C to +105°C, supporting up to 600V and 3A, suitable for industrial, automotive, and telecommunications applications.
MOLEX 2162721064 Stackable Cable Assembly Specifications:
- Connector Type: Discrete wire, FFC, and IDT termination
- Current Rating: 3A per contact
- Voltage Rating: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Material - Housing: Polyester alloy
- Contact Material: Phosphor bronze
- Contact Plating: Tin
- Number of Mating Cycles: Up to 25
- Pin Pitch: 2.54mm
- Locking Feature: Position assurance lock for vibration resistance
- Configuration: Vertical and right-angle stackable housing
- Application: Consumer electronics, industrial, automotive, data, medical, telecom
Buy the Molex Series SL Cable Assembly: 2162721064
Purchase the Molex Series SL Cable Assembly 2162721064 online now to benefit from reliable connection performance in industrial, automotive, or telecom systems. Designed with a positive lock, multiple termination styles, and robust construction, this assembly supports 600V and 3A, ensuring safe and efficient operation in vibration-prone environments. Its versatile configurations, including vertical and right-angle housings, enhance flexibility for various applications. With a rated lifespan of up to 25 mating cycles, it offers both durability and high performance for your projects, available now for quick online ordering.
Order your Molex Series SL Cable Assembly 2162721064 today and ensure reliable, high-quality connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 2162721064?
You can click on the BUY or RFQ button to purchase 2162721064 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162721064?
You can download the 2162721064 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162721064?
MOLEX
