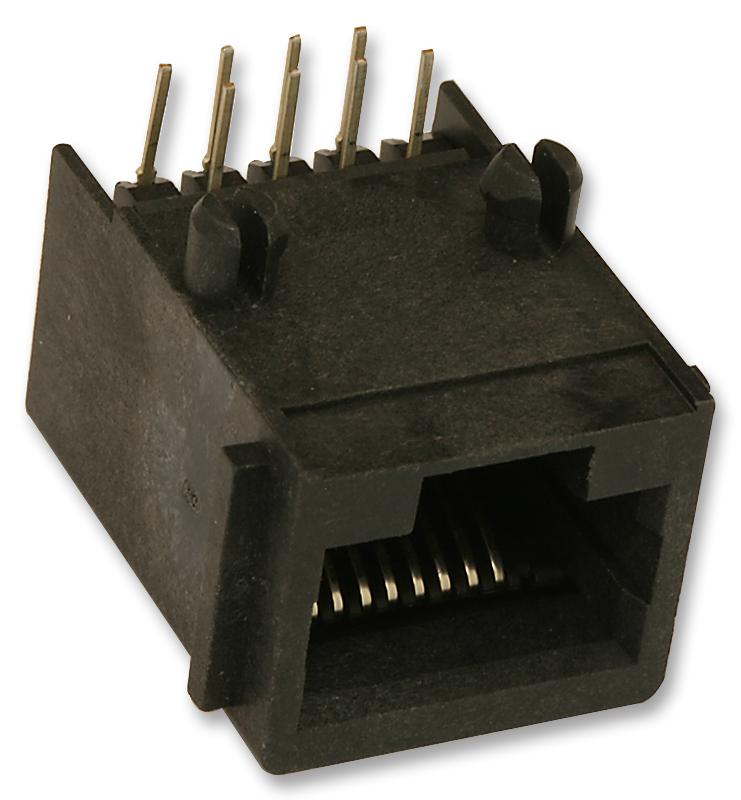

MOLEX 432498104 RJ45 Modular Jack
The modular jack is a right-angle, low-profile 8/8 RJ45 connector designed for power over Ethernet (PoE) applications. Made with durable phosphor bronze and a high-temperature thermoplastic housing, it features gold-plated contacts for reliable electrical performance and tin-plated terminations ensuring corrosion resistance. It supports up to 1.5A current per contact, with an operating temperature range of -40°C to +85°C. Suitable for PCB mounting with a 1.57mm pitch, it offers excellent durability with up to 500 mating cycles, and complies with RoHS and UL standards for safety and environmental friendliness.
MOLEX 432498104 RJ45 Modular Jack Specifications:
- Component Type: Magnetic
- Product Family: Modular Jacks/Plugs
- Series: 43249
- Color - Resin: Black
- Durability (mating cycles max): 500
- Flammability: UL 94V-0
- Inverted / Top Latch: No
- Jack Height: 12.83mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 3.328g
- Orientation: Right Angle (Side Entry)
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.57mm
- Packaging Type: Tray
- Pitch - Mating Interface: 1.27mm
- Pitch - Termination Interface: 1.02mm
- Plating min - Mating: 2.540um
- Plating min - Termination: 2.540um
- Port Configuration: 8/8
- Positions / Loaded Contacts: 8/8
- Surface Mount Compatible (SMC): No
- Temperature Range - Operating: -40°C to +85°C
- Termination Interface: Style: Through Hole
- Waterproof / Dustproof: No
- Wire/Cable Type: N/A
- Electrical - Max Voltage: 150V AC (RMS)
- Current - Max per Contact: 1.5A
- Certifications: UL, RoHS Compliant
- Agency Certification: CSA
Buy the Molex 043249 U–2013 Reliable Modular Jack for Industrial Applications
Purchase the Molex 043249 modular jack online today to benefit from a high-quality, robust connector suitable for Ethernet and PoE applications. Designed with gold-plated contacts and robust thermoplastic housing, this high-performance jack guarantees reliable data transmission and durability with up to 500 mating cycles. Its compact right-angle design fits neatly on PCBs with a 1.57mm pitch, supporting operating temperatures from -40°C to +85°C. Certified with UL and RoHS standards, it’s ideal for industrial environments demanding safety, efficiency, and long-term reliability.
Order your Molex 043249 modular jack today and ensure reliable Ethernet connections for your industrial projects with durable, high-quality components.
Frequently Asked Questions
Where can I buy MOLEX 432498104?
You can click on the BUY or RFQ button to purchase 432498104 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 432498104?
You can download the 432498104 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 432498104?
MOLEX
