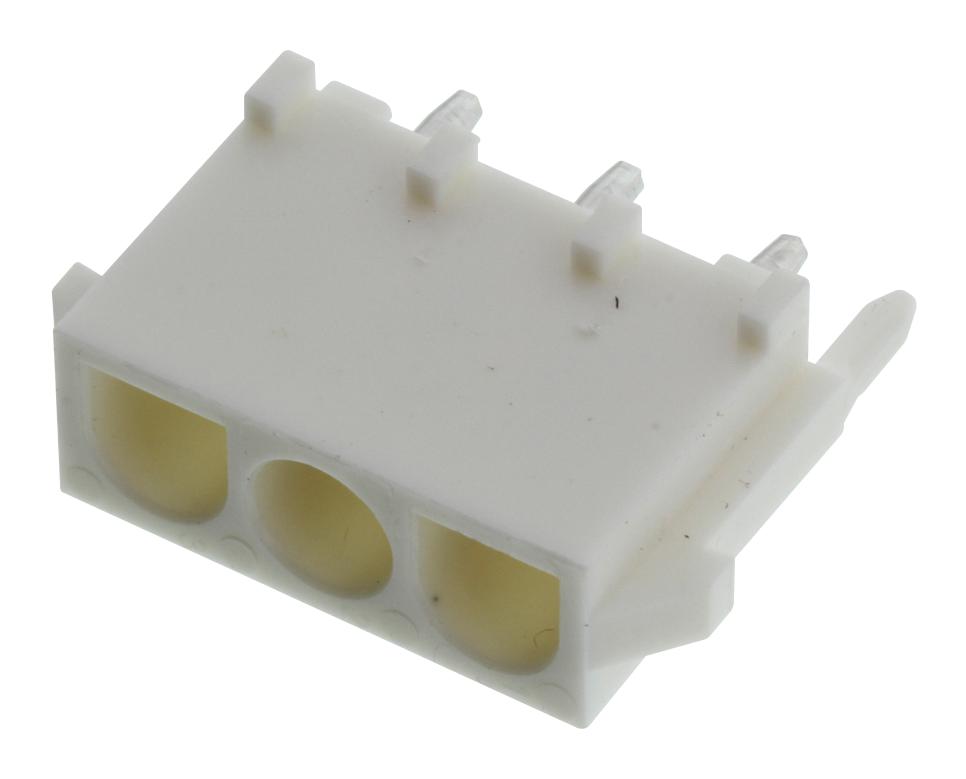

MOLEX 432550067 Power Connector Header
The MLX Power Connector Header features a 6.35mm pitch and 2.13mm contact diameter, designed for high vibration applications. Made from polyester with UL 94V-0 flammability and tin plating, it supports 3 circuits in a vertical orientation with a PCB height of 1.60mm. It operates within a temperature range of -55°C to +105°C, supports up to 12A per contact, and can handle maximum voltage of 600V. Suitable for board-to-board and wire-to-board connections, this connector is durable, polarized, and shrouded for secure mating in demanding environments.
MOLEX 432550067 Power Connector Header Specifications:
- Pitch - Mating Interface: 6.35mm
- Contact Diameter: 2.13mm
- Number of Circuits (Loaded): 3
- Maximum Circuits: 3
- Material - Resin: Polyester 94V-0
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Flammability: UL 94V-0
- Temperature Range - Operating: -55°C to +105°C
- Current - Maximum per Contact: 12.0A
- Voltage - Maximum: 600V
- Vertical orientation
- PCB Tail Length: 1.60mm
- Mated Height: 1.60mm
- Net Weight: 2.233g
- Durability (mating cycles max): Not specified but designed for high vibration environments
- Shrouded: Yes
- Polarized to Mating Part: Yes
- Surface Mount Compatible (SMC): No
- Through Hole: Yes
- Process Temperature max.: 260°C
Buy the Molex Series MLX Power Connectors: 6.35mm Pitch Power Header 432550067
Order the Molex Power Connector Header designed for high vibration applications. With a 6.35mm pitch, 3 circuits, and a wide operating temperature of -55°C to +105°C, this connector guarantees reliable electrical performance. Made from UL 94V-0 polyester and tin-plated contacts, it supports up to 12A per contact at 600V. Its vertical design with a PCB tail length of 1.60mm ensures easy integration into power and board-to-board assemblies, providing durability and secure connections in demanding environments.
Get Molex 432550067 today—built for high vibration environments, ensuring secure power connections with durable design and UL/CSA certification.
Frequently Asked Questions
Where can I buy MOLEX 432550067?
You can click on the BUY or RFQ button to purchase 432550067 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 432550067?
You can download the 432550067 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 432550067?
MOLEX
