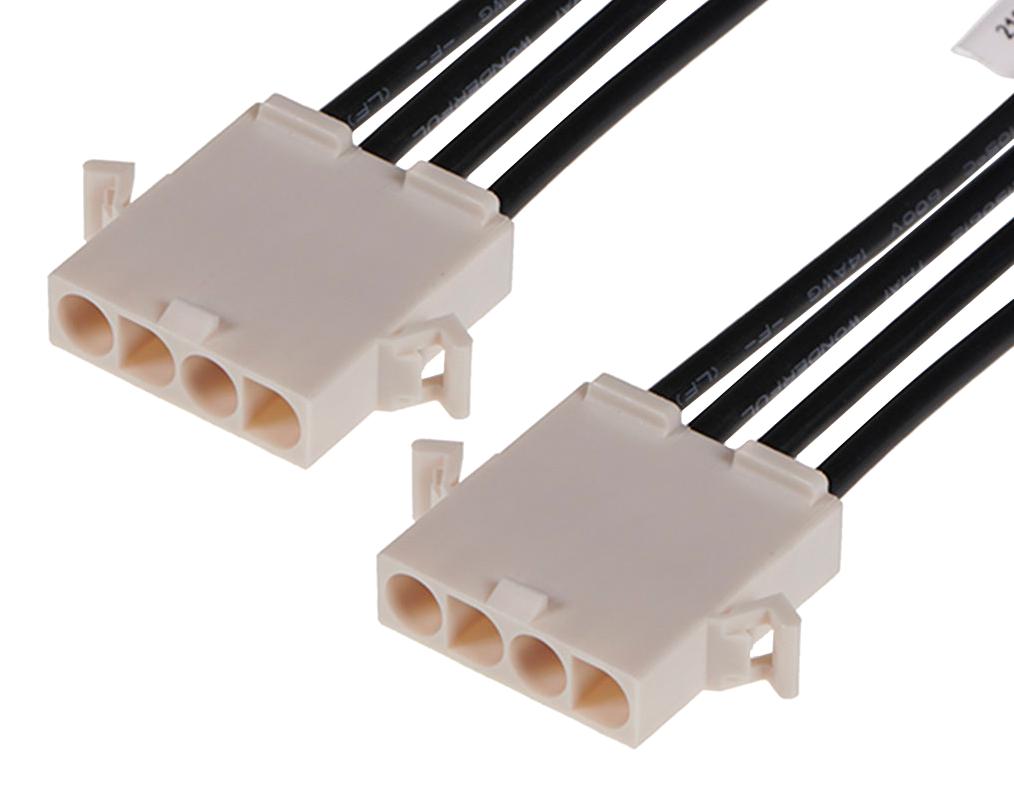

MOLEX 2162921042 Cable Assembly
The 216292 series is an off-the-shelf standard .093-inch male-to-male cable assembly designed for versatile applications in consumer electronics, data communication, and networking. It offers flexible installation options with panel-mount configurations and pre-bent ears, while keying and polarizing features help prevent mis-mating. Compatible with .093-inch connector housings and terminals, it supports a maximum voltage of 600V and is rated for up to 25 mating cycles with tin plating for corrosion resistance. Operating temperature ranges from -40°C to +105°C, ensuring reliable performance in various environments.
MOLEX 2162921042 Cable Assembly Specifications:
- Connector type: Male-to-Male
- Pitch: .093 inches
- Cable length: 300mm
- Number of circuits: 4
- Material - Metal: Brass
- Plating - Mating: Tin
- Plating - Termination: Tin
- Resin: Nylon
- Maximum voltage: 600V AC/DC
- Maximum current: 12.0A per contact
- Operating temperature: -40°C to +105°C
- Rated mating cycles: 25
- Color: Natural
- Assembly: Discrete wire
- Certifications: RoHS Compliant, UL 1015
Buy the Molex Series 216292 Cable Assembly: 2162921042
Purchase the Molex Series 216292 cable assembly online today for your networking and data communication needs. This robust .093-inch male-to-male connector features a 300mm length, tin plating for durability, and is rated up to 600V. Its keying and polarizing features prevent mis-mating, while its rated for 25 mating cycles. Operating from -40°C to +105°C, it’s suitable for various environments, offering reliable performance. Buy online now and enhance your electronic and network setups with quality connection solutions.
Order your Molex Series 216292 300mm cable assembly today and ensure reliable connectivity for your data and communication projects.
Frequently Asked Questions
Where can I buy MOLEX 2162921042?
You can click on the BUY or RFQ button to purchase 2162921042 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162921042?
You can download the 2162921042 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162921042?
MOLEX
