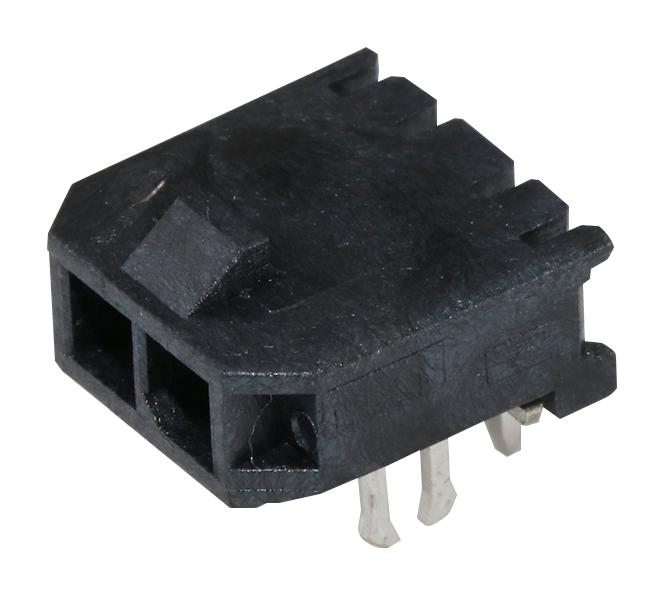

MOLEX 436500205 power connector
This Molex Micro-Fit 3.0 right-angle header provides a reliable power connection for wire-to-board applications. Constructed from high-temperature thermoplastic, it features a 3.00mm pitch, single row, 2 circuits, with PCB press-fit metal retention clip, gold plating, and glow-wire capability, ensuring safety and durability. Designed for maximum electrical load of 8.5A at 600V, it supports up to 30 mating cycles. Suitable for high-temperature environments from -40°C to +105°C, it is RoHS and UL certified, making it ideal for industrial and electronic device applications requiring robust power distribution.
MOLEX 436500205 power connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 2
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Durability: 30 mating cycles
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 6.98mm
- Temperature Range: -40°C to +105°C
- Current - Max per Contact: 8.5A
- Voltage - Max: 600V
- PCB Thickness - Recommended: 1.60mm
- Packaging: Tray
- Termination Style: Through Hole
- Surface Mount Compatible: No
- Polarized to PCB: Yes
- Shrouded: No
- Stackable: No
Buy the Molex Series Micro-Fit 3.0 Power Connector: 0436500205
Order the Molex Micro-Fit 3.0 power connector online today to ensure your electronic or industrial project benefits from reliable, high-temperature rated power connections. Featuring a 3.00mm pitch, gold-plated contacts, and robust thermoplastic body, this connector supports up to 8.5A at 600V, is RoHS and UL compliant, and offers up to 30 mating cycles. Its design ensures safety, durability, and easy PCB integration, making it the ideal choice for demanding power distribution applications in various electronic devices.
Buy Molex 0436500205 now and experience unmatched reliability and performance with high-current, durable power connection solutions.
