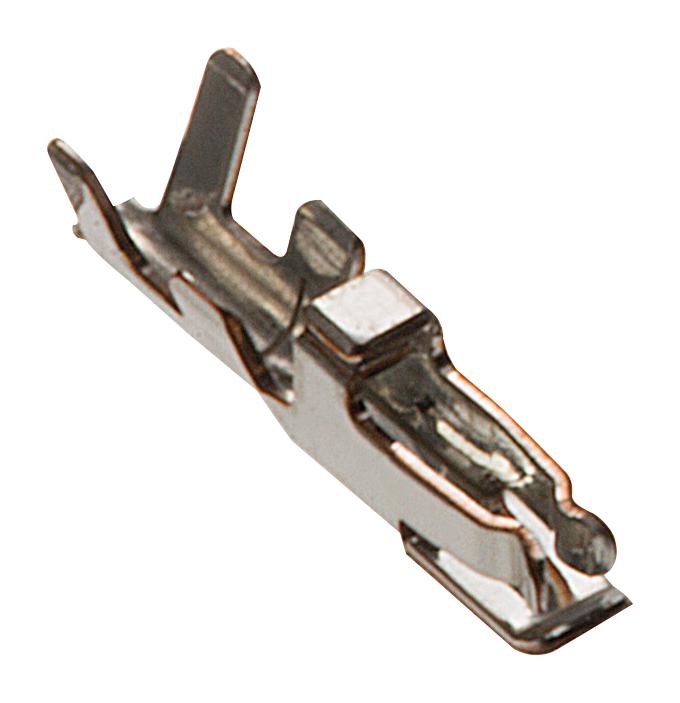

MOLEX 5054311000 Wire-to-Board Receptacle Terminal
The Molex Micro-Lock PLUS receptacle terminal designed for reliable wire-to-board connections features a copper alloy construction with tin plating, accommodating wire sizes from 30AWG to 26AWG and insulation diameters between 0.78mm and 1.02mm. It supports a maximum current of 1.5A and voltage of 50V AC or DC, making it suitable for automotive and consumer electronic applications. Compatible with Micro-Lock PLUS receptacle housings 505432 and 505565, this terminal provides robust crimp or compression termination for secure and efficient electrical connections, ensuring longevity and consistent performance in various conditions.
MOLEX 5054311000 Wire-to-Board Receptacle Terminal Specifications:
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Size AWG: 30-26
- Wire Insulation Diameter: 0.78-1.02mm
- Current - Maximum per Contact: 1.5A
- Voltage - Maximum: 50V AC (RMS)/DC
- Durability (mating cycles max): Not specified
- Gender: Female
- Net Weight: Not specified
- Packaging Type: Reel
- Termination Interface: Crimp or Compression
- Reference - Drawing Numbers: 2045230000-AS-000, 2045230000-AS-001, 2045320000-AS-000, 2045320000-AS-001
- Application Specification: AS-505432-001-001, AS-505432-002-001, AS-505565-002-001
- RoHS and ELV compliant, Halogen-Free: Yes
Buy the Molex Series Micro-Lock PLUS Receptacle Terminal: 5054311000
Purchase the Molex Micro-Lock PLUS receptacle terminal online for secure, reliable wire-to-board connections in automotive and electronic applications. Crafted from copper alloy and tin-plated for corrosion resistance, this terminal supports wire sizes from 30 to 26 AWG and insulation diameters of 0.78mm to 1.02mm. It handles a maximum current of 1.5A and voltage of 50V AC/DC. Its crimp or compression interface ensures a quick and dependable connection, ideal for demanding environments requiring durability and consistent electrical performance.
Buy Molex 5054311000 now and experience unmatched reliability and performance with a durable copper alloy construction and secure crimp termination.
Frequently Asked Questions
Where can I buy MOLEX 5054311000?
You can click on the BUY or RFQ button to purchase 5054311000 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5054311000?
You can download the 5054311000 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5054311000?
MOLEX
