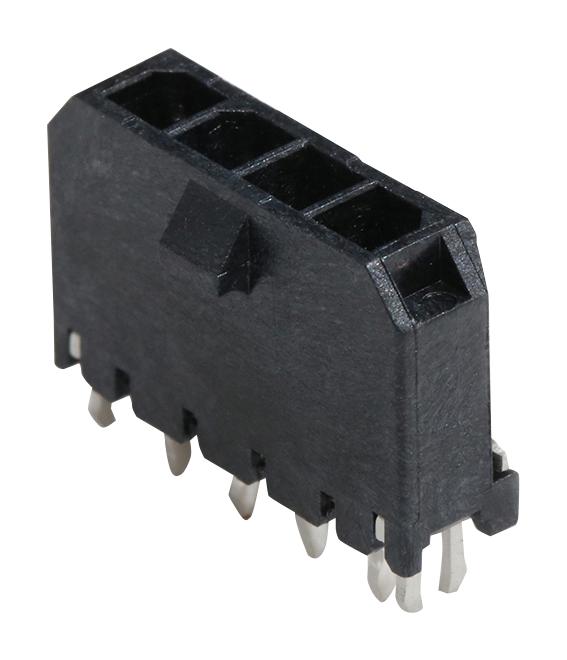

MOLEX 436500422 Micro-Fit 3.0 Vertical Header
The MOLEX 43650-0422 is a Micro-Fit 3.0 vertical header, part of the 43650 series, designed for robust wire-to-board connections. This header offers a 3.00mm pitch and accommodates 4 circuits, making it suitable for various power applications. Constructed with a high-temperature thermoplastic resin and brass with gold mating plating and tin termination plating, it ensures reliable performance. It is glow-wire capable and compliant with RoHS standards, making it a safe and environmentally conscious choice for industrial applications. Customers should perform their own suitability testing to ensure optimal performance in their specific application.
MOLEX 436500422 Micro-Fit 3.0 Vertical Header Specifications:
- Product Family: Micro-Fit 3.0 Connector System
- Description: Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 4 Circuits, with PCB Press-fit Metal Retention Clip, Gold, Glow-Wire Capable, Black
- Circuits (Loaded): 4
- Circuits (maximum): 4
- Color - Resin: Black
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 17.27mm
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 0.939/g
- Number of Rows: 1
- Orientation: Vertical
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Embossed Tape on Reel
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 0.381µm
- Plating min - Termination: 2.540µm
- Polarized to PCB: Yes
- Shrouded: Fully
- Stackable: No
- Temperature Range - Operating: -40° to +105°C
- Termination Interface: Style: Surface Mount
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Duration at Max. Process Temperature (seconds): 030
- Lead-freeProcess Capability REFLOW: Yes
- Max. Cycles at Max. Process Temperature: 003
- Process Temperature max. C: 260
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- Mates With: Micro-Fit 3.0 Receptacle Housing 43645, Micro-Fit 3.0 TPA Receptacle Housing 171850
