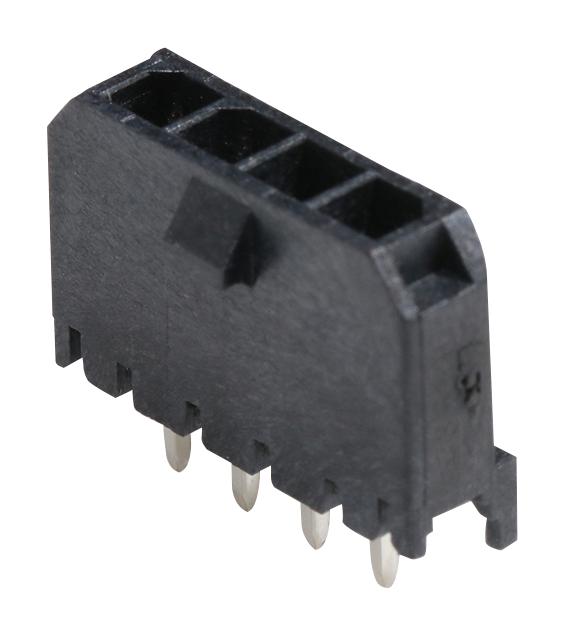

MOLEX 436500429 Micro-Fit 3.0 Vertical Header
The MOLEX 43650-0429 is a Micro-Fit 3.0 vertical header, part of the 43650 series, designed for robust wire-to-board connections. This header offers a 3.00mm pitch and accommodates 4 circuits in a single row. Constructed with a brass body, gold mating plating, and tin termination plating, it ensures excellent electrical performance and durability. The header is polarized to the PCB, features a polarizing peg, and is fully shrouded for protection. It is glow-wire capable, meeting stringent safety standards, and is RoHS compliant, making it suitable for a wide range of applications including power distribution in household and similar electrical appliances.
MOLEX 436500429 Micro-Fit 3.0 Vertical Header Specifications:
- Product Family: Micro-Fit 3.0 Connector System
- Series: 43650
- Application: Power, Wire-to-Board
- Circuits (Loaded): 4
- Circuits (maximum): 4
- Color - Resin: Black
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Lock to Mating Part: Yes
- Mated Height: 17.27mm
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 0.736/g
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 3.18mm
- PCB Locator: Yes
- PCB Retention: None
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 0.762µm
- Plating min - Termination: 2.540µm
- Polarized to PCB: Yes
- Shrouded: Fully
- Stackable: No
- SMC Compatible: Yes
- Temperature Range - Operating: -40° to +105°C
- Termination Interface: Style: Through Hole
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Lead-freeProcess Capability: SMC&WAVE
- Max. Cycles at Max. Process Temperature: 003
- Process Temperature max. C: 260
