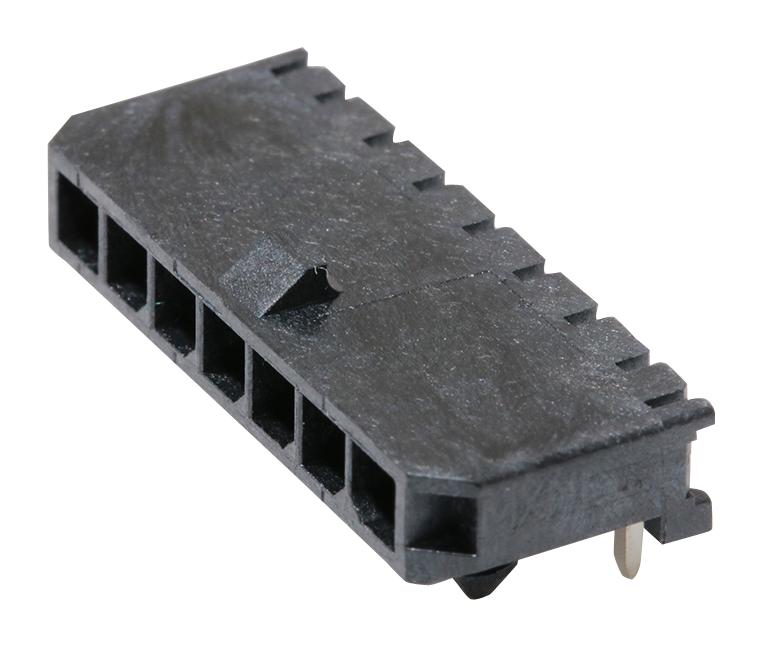

MOLEX 436500701 Micro-Fit 3.0 Header
The MOLEX 43650-0701 is a Micro-Fit 3.0 right-angle header, part of the Micro-Fit 3.0 Connector System. Designed for power and wire-to-board applications, this header features 7 circuits arranged in a single row with a 3.00mm pitch. It incorporates a snap-in plastic peg PCB lock for secure connection and is finished with gold plating for mating and tin plating for termination. The header is glow-wire capable, meeting IEC 60335-1 safety standards, and constructed from high-temperature thermoplastic and brass. It is suitable for applications requiring robust and reliable electrical connections and is compatible with Micro-Fit 3.0 receptacle housings.
MOLEX 436500701 Micro-Fit 3.0 Header Specifications:
- Product Family: Micro-Fit 3.0 Connector System
- Application: Power, Wire-to-Board
- Circuits (Loaded): 7
- Circuits (maximum): 7
- Mating Interface Pitch: 3.00mm
- PCB Thickness - Recommended: 1.60mm
- Mating Plating min: 0.381µm
- Termination Plating min: 2.540µm
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Operating Temperature Range: -40° to +105°C
- Material - Resin: High Temperature Thermoplastic
- Material - Metal: Brass
- Flammability: 94V-0
- Durability (mating cycles max): 30
- Mated Height: 6.98mm
- Net Weight: 1.307/g
- Number of Rows: 1
- Orientation: Right Angle
- PCB Locator: Yes
- PCB Retention: Yes
- Surface Mount Compatible: Yes
- Glow-Wire Capable: Yes
- Polarized to PCB: Yes
- Stackable: No
