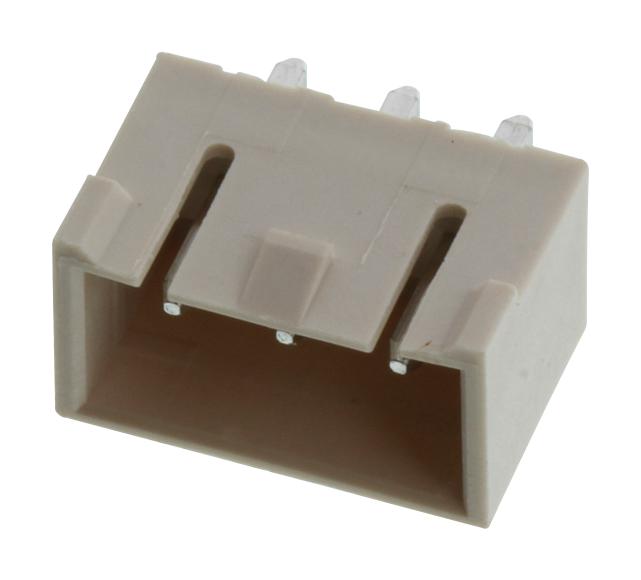

MOLEX 353130360 Power Header
The 3.96mm Pitch Header is a vertical, shrouded wire-to-board connector with positive lock features, designed for power and signal applications. Made from glass-filled PA Polyamide (Nylon) 6/6, it offers durability with up to 30 mating cycles and complies with RoHS and UL standards. Suitable for PCB mounting, it supports a maximum current of 7.0A per contact and a voltage of 250V, with a temperature range of -40°C to +105°C. Its robust design ensures secure connections in industrial and electronic equipment.
MOLEX 353130360 Power Header Specifications:
- Pitch: 3.96mm
- Number of Circuits: 3
- Material: Glass-filled PA Polyamide (Nylon) 6/6
- Color - Resin: Natural
- Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 7.0A
- Voltage - Maximum: 250V
- Flammability: 94V-0
- Plating: Tin
- Durability (Mating Cycles): 30
- Orientation: Vertical
- PCB Tail Length: 3.40mm
- PCB Thickness - Recommended: 1.60mm
- Packaging: Bag
- RoHS Compliant
Buy the Molex Series 35313 Power Connector: 353130360
Enhance your electronics with the Molex Series 35313 Power Header, featuring a 3.96mm pitch, vertical shrouded design, and positive lock. Made from durable glass-filled Nylon, it supports up to 7A and 250V, ensuring safe and reliable power connections. Its robust construction provides up to 30 mating cycles, making it suitable for industrial, automation, and electronic applications. RoHS compliant and designed for PCB mounting, this connector guarantees secure attachment and easy installation for a variety of projects, maximizing performance and safety.
Order your Molex Series 35313 3.96mm Pitch Power Header today and secure reliable connections for your electrical and electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 353130360?
You can click on the BUY or RFQ button to purchase 353130360 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 353130360?
You can download the 353130360 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 353130360?
MOLEX
