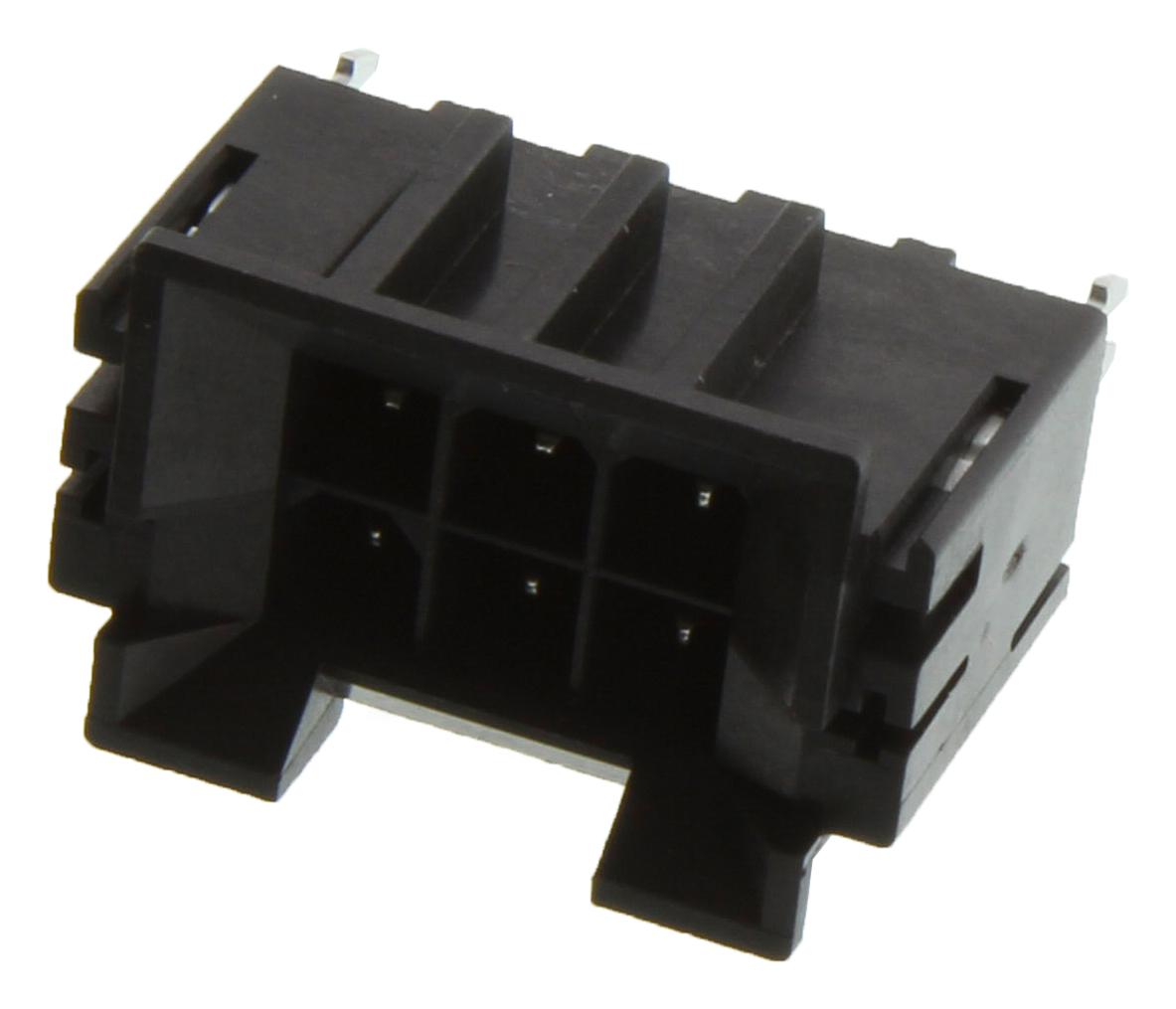

MOLEX 440680002 Mini-Fit BMI Connector
The Mini-Fit BMI connector is a high-temperature thermoplastic, 6-circuit, vertical PCB header designed for power and wire-to-board applications. Featuring a 4.20mm pitch, tin-plated brass contacts rated at 13A per circuit and maximum voltage of 600V, it supports operating temperatures from -40°C to +105°C. The connector is RoHS compliant, UL and CSA certified, with a wave solderable design, PCB retention, and a 30mm PCB tail length. It offers durable, reliable connections for electronic systems requiring robust power distribution and high mating cycle endurance.
MOLEX 440680002 Mini-Fit BMI Connector Specifications:
- Number of Circuits: 6
- Color: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Dimensions - PCB Tail Length: 30mm
- Pitch - Mating Interface: 4.20mm
- Voltage Rating: 600V
- Current - Maximum per Contact: 13A
- Operating Temperature Range: -40°C to +105°C
- Durability: Supports multiple mating cycles
- Flammability: 94V-0
- Surface Mount Compatible: Yes
- PCB Thickness - Recommended: 1.60mm
- Certification: RoHS, UL, CSA compliance
- Packaging: Tray
Buy the Molex Series Mini-Fit BMI Connectors: 440680002
Discover the Molex Mini-Fit BMI connector, a reliable 6-circuit, vertical PCB header designed for power and wire-to-board applications. With a 4.20mm pitch, tin-plated brass contacts rated at 13A, and maximum voltage of 600V, this connector operates efficiently over a temperature range from -40°C to +105°C. RoHS, UL, and CSA certified, it features wave solderability, PCB retention, and a 30mm tail length. Perfect for high-power, durable connections in various electronic systems requiring high mating cycle endurance.
Get Molex 440680002 today—built for high current power applications with reliable, wave-solderable design and durable connections.
Frequently Asked Questions
Where can I buy MOLEX 440680002?
You can click on the BUY or RFQ button to purchase 440680002 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 440680002?
You can download the 440680002 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 440680002?
MOLEX
