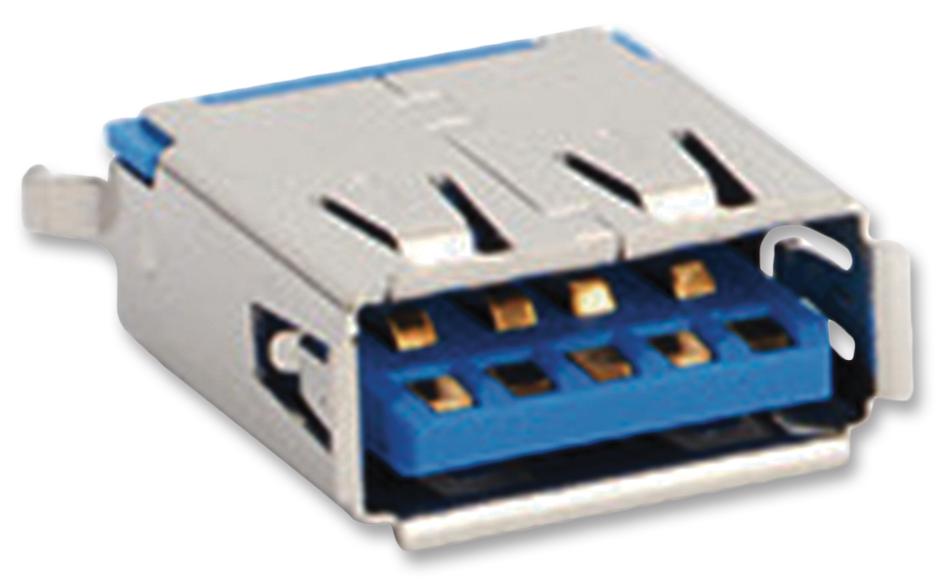

MOLEX 484080003 USB 3.0 Connectors
The USB 3.0 high durability Type A connectors from Molex offer reliable high-speed data transfer up to 5.0 Gbps, supporting 5,000 mating cycles for robust use. Made with halogen-free, high-temperature nylon housing, these connectors come in multiple mounting and orientation options, including on-board, top- or reverse-mount, upright, and vertical styles. They feature a maximum voltage of 30V DC/AC, a current capacity of 1.8A, and withstand IR reflow temperatures up to 255°C. Perfect for high-end computing, consumer electronics, and automotive applications requiring secure, fast, and durable connections.
MOLEX 484080003 USB 3.0 Connectors Specifications:
- Housing Material: Nylon 9T, UL94V-0, Blue
- Contact Material: Copper Alloy
- Shell: Stainless Steel
- Plating: Copper Alloy with Gold (Au) contact on mating area, Nickel over solder tails
- Voltage (max.): 30V DC/AC
- Current (max.): 1.8A for VBUS and GND, 0.25A for others
- Dimensions: Contact height varies from 0.36mm to 6.09mm, shell heights from 13.85mm to 15.50mm
- Operating Temperature: -20 to +85°C
- Durability: 5,000 mating cycles
- Insulation Resistance: ≥100 megohms
- Dielectric Withstanding Voltage: 100VAC RMS
- Insertion Force: Max. 35N
- Unmating Force (initial): Min. 10N
- Unmating Force (final): Min. 8N
Buy the Molex Series USB 3.0 Connectors: 484080003
Enhance your electronic and computing projects with Molex high durability USB 3.0 connectors, supporting data speeds up to 5.0 Gbps. These versatile, halogen-free connectors come in various orientations including on-board, reverse, and vertical mount styles, with contact heights from 0.36mm to 6.09mm for flexibility. With a maximum voltage of 30V and current capacity of 1.8A, they withstand IR reflow temperatures of 255°C, ensuring reliable, high-speed connections for consumer, automotive, and industrial applications. Order online today for robust and efficient connectivity solutions.
Get Molex 484080003 high durability USB 3.0 connectors today—built for fast data transfer, reliability, and long-lasting performance in demanding environments.
Frequently Asked Questions
Where can I buy MOLEX 484080003?
You can click on the BUY or RFQ button to purchase 484080003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 484080003?
You can download the 484080003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 484080003?
MOLEX
