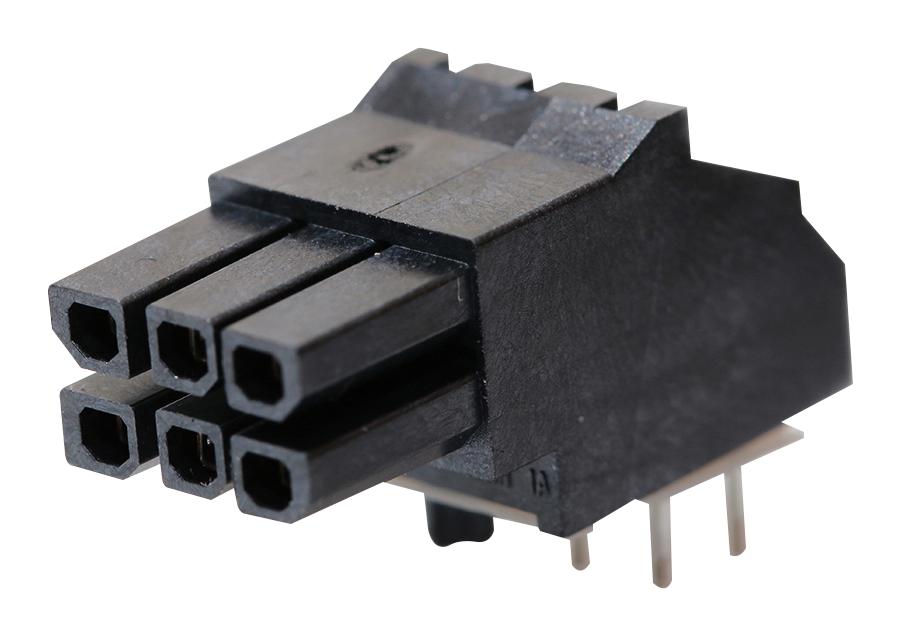

MOLEX 447640601 Micro-Fit Receptacle Header
The MOLEX 44764-0601 is a Micro-Fit BMI receptacle header within the Micro-Fit 3.0 Connector System family. This header is designed for robust connections in various applications including board-to-board, power, and wire-to-board configurations. It features a right-angle orientation, facilitating space-saving designs, and utilizes tin plating for enhanced conductivity and corrosion resistance. The header supports 6 circuits and is suitable for applications requiring a secure and reliable electrical interface.
MOLEX 447640601 Micro-Fit Receptacle Header Specifications:
- circuits_loaded: 6 Circuits
- circuits_maximum: 6 Circuits
- durability_mating_cycles_max: 30
- flammability: 94V-0
- glow_wire_capable: No
- material_metal: Phosphor Bronze
- plating_mating: Tin
- plating_termination: Tin
- net_weight_g: 1.850
- number_of_rows: 2
- orientation: Right Angle
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended_mm: 1.60
- packaging_type: Tray
- pitch_mating_interface_mm: 3.00
- plating_min_mating_um: 1.016
- plating_min_termination_um: 1.016
- polarized_to_pcb: Yes
- surface_mount_compatible_smc: No
- temperature_range_operating_c: -40° to +105°
- termination_interface_style: Through Hole
- current_maximum_per_contact_a: 8.5
- voltage_maximum_v: 600
- max_process_temp_duration_seconds: 005
- max_cycles_process_temp: 001
- process_temperature_max_c: 260
