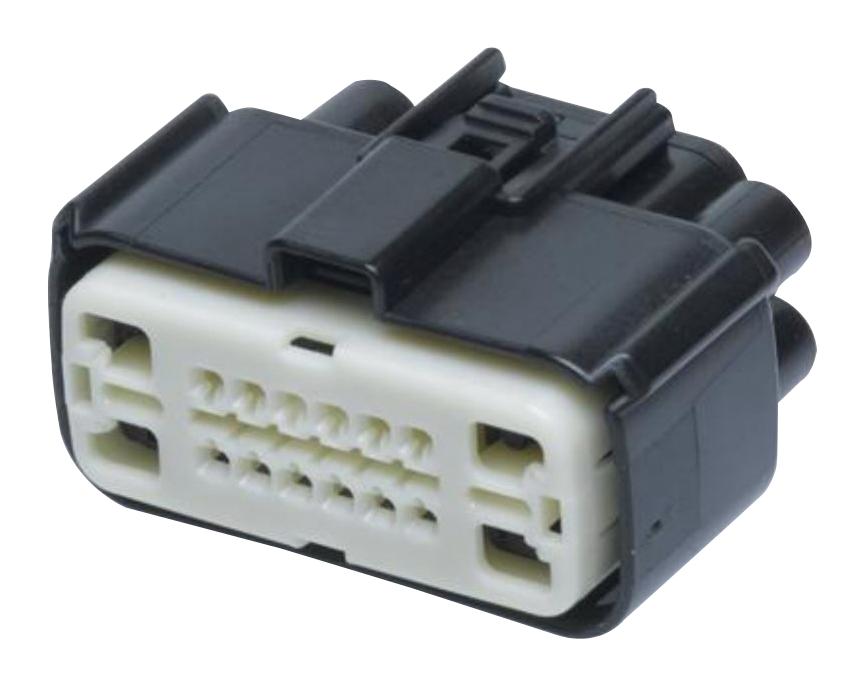

MOLEX 349851601 MX150 Hybrid Sealed Connector
The MOLEX 34985-1601 is a key component within the MX150 Sealed and Unsealed Connector System. This hybrid sealed female connector assembly is designed for demanding applications requiring a secure and reliable connection, such as in automotive, industrial, and power distribution systems. It boasts 16 circuits, a dual-row configuration, and keying option A for positive mating. Constructed with SPS/Nylon resin, it offers excellent durability and temperature resistance (-40°C to +125°C). It is RoHS compliant and features a low-halogen content, aligning with environmental standards. Pair it with the 34986 male connector and MX150 female terminals for a complete system.
MOLEX 349851601 MX150 Hybrid Sealed Connector Specifications:
- circuits_maximum: 16
- color_resin: Black
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: SPS/Nylon
- net_weight_g: 24.306
- number_of_rows: 2
- packaging_type: Individual Cell Panel Mount
- pitch_mating_interface: 3.50mm
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +125°
- eu_elv_compliant: Yes
- eu_rohs_compliant: Yes
- china_rohs_compliant: Yes
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- mates_with: 34986
- use_with: 33012, 33001, Industry Standard Terminal 2.80mm
