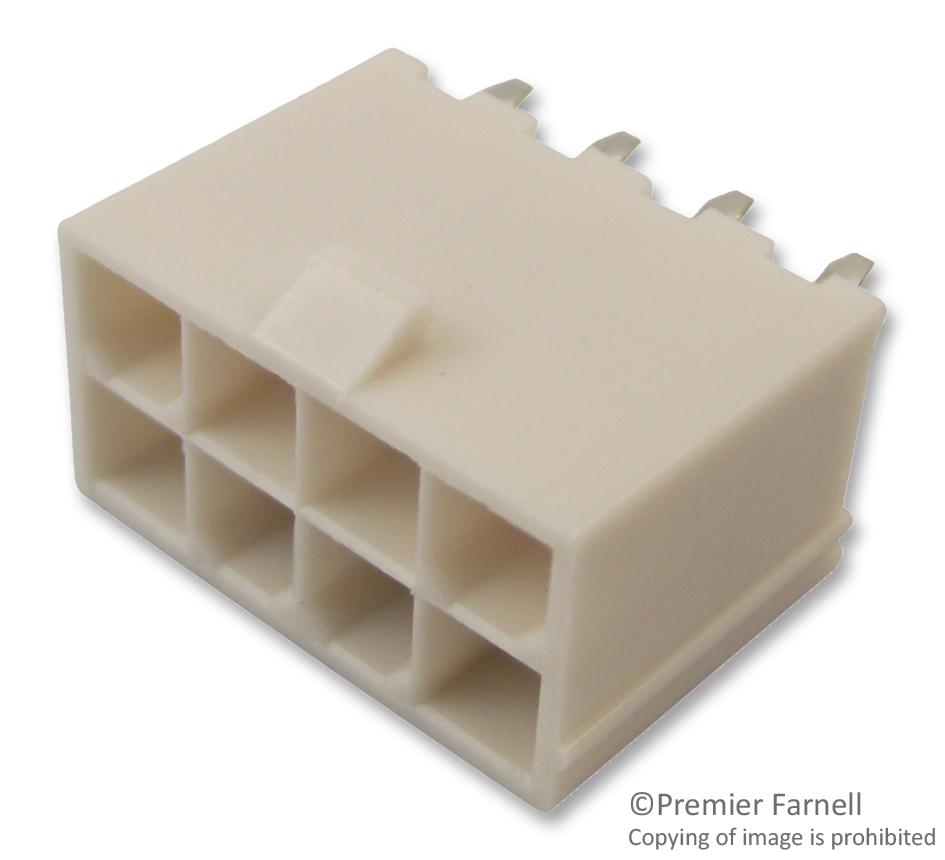

MOLEX 460150603 Power Header
The Mini-Fit Plus Header is a versatile, high-current power connector designed for PCB applications, offering secure locking, dual-row arrangement, and up to 13A current per circuit. Constructed from durable PA Polyamide Nylon 6/6 with UL 94V-0 flame rating, it features tin-plated copper alloy contacts for reliable electrical connection. The connector supports a maximum voltage of 600V, operates from -40°C to +105°C, and provides 75 mating cycles for durability. Its vertical orientation, 1.80mm pitch, and PCB retention clips ensure secure mounting and ease of assembly, making it suitable for power distribution and industrial electronics.
MOLEX 460150603 Power Header Specifications:
- Number of Circuits: 6
- Current per Circuit: 13A
- Maximum Voltage: 600V
- Material - Housing: PA Polyamide Nylon 6/6, UL 94V-0
- Material - Contact: Copper Alloy
- Contact Plating: Tin
- Net Weight: 1.502 grams
- Color - Resin: Natural
- Orientation: Vertical
- PCB Tail Length: 1.78mm
- Pitch - Mating Interface: 4.20mm
- Durability (Mating Cycles Max): 75
- Operating Temperature Range: -40°C to +105°C
- Locking Mechanism: Lock to Mating Part
- Termination Style: Through Hole
- UL and CSA Certified
- Halogen-Free and Low-Halogen
Buy the Buy Molex Mini-Fit Plus Part Number 460150603 Online
Purchase the Molex Mini-Fit Plus Power Header online today to ensure robust power connection for your electronic projects. Featuring six circuits, each supporting up to 13A and 600V, this high-current connector is made from UL 94V-0 nylon and tin-plated copper alloy for durability and reliable performance. Its vertical orientation, 75 mating cycles, and PCB retention clip make it ideal for industrial, power supply, and electronics applications. Enjoy quick, secure online ordering for this versatile component designed for long-lasting, safe power connections.
Get Molex Mini-Fit Plus Part Number 460150603 today—designed for high-current power distribution with reliable locking and PCB retention for industrial electronics.
Frequently Asked Questions
Where can I buy MOLEX 460150603?
You can click on the BUY or RFQ button to purchase 460150603 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 460150603?
You can download the 460150603 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 460150603?
MOLEX
