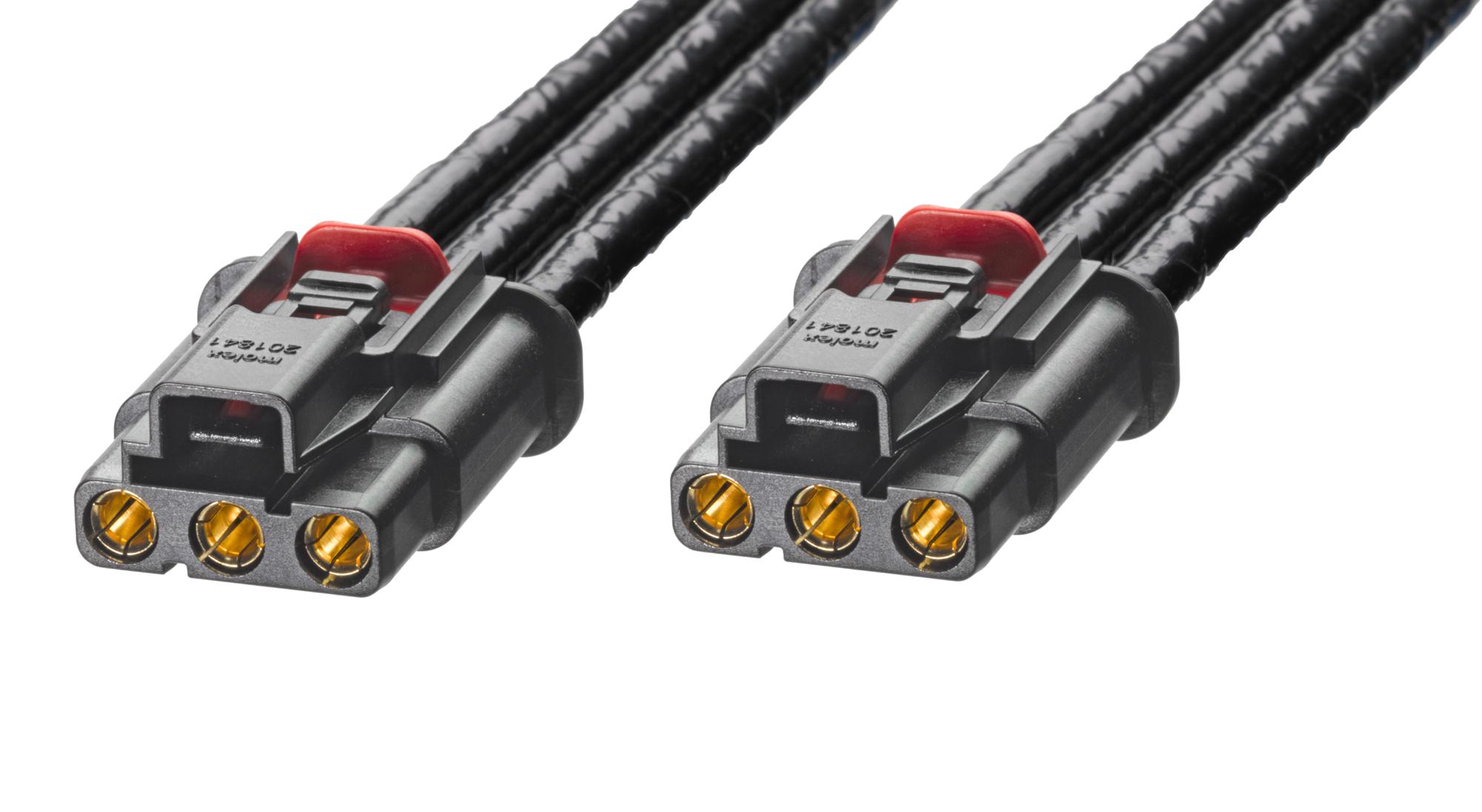

MOLEX 451410310 Power Connector
The MultiCat Power Connector assembly is designed for high power applications, featuring precision-machined contacts and a robust overmolded connector-to-connector configuration. It supports a 1.0-meter cable length with 8 AWG wire size, accommodating three circuits for efficient power transmission. Constructed with copper alloy and gold over nickel phosphorus plating, it ensures high reliability and excellent electrical conductivity. The connector is suitable for power, wire-to-wire, and wire-to-board applications, offering UL 10669 certification, a maximum current of 40.0A, and a maximum voltage of 1000V AC. Its compact design includes a female-female gender, black color, and female mounting style.
MOLEX 451410310 Power Connector Specifications:
- Cable Length: 1.0m
- Circuits: 3
- Wire Size AWG: 8
- Color: Black
- Gender: Female-Female
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold over Nickel Phosphorus
- Material - Plating Termination: Gold
- Material - Resin: PEI
- Maximum Current per Contact: 40.0A
- Maximum Voltage: 1000V AC
- Contact Material: Copper Alloy
- Lock to Mating Part: Yes
- Termination Interface Style: Crimp or Compression
- Wire Insulation Diameter: 4.03mm-5.84mm
- Net Weight: Not specified
- Number of Rows: 1
- Pitch - Mating Interface: 0.100 inches
- Certifications: UL 10669
- RoHS Compliant: Yes
- REACH SVHC: Contained
- Halogen-Free: No
- Status: Active
Buy the Molex Series 45141 Power Connector: 451410310
Order the Molex 451410310 Power Connector online today to enhance your power supply systems with a high-quality, reliable multi-circuit connection. Featuring a 1-meter cable, 8 AWG wire size, and UL 10669 certification, this connector supports up to 40A and 1000V AC, making it ideal for power, wire-to-wire, and wire-to-board applications. Its precision-machined contacts, robust overmolded design, and female-female configuration ensure durable and secure connections. Buy now for fast shipping and exceptional performance in demanding environments.
Buy Molex 451410310 power connector now and experience unmatched reliability and high current capacity for your power and wiring needs.
